LT6703CDC-3#TRPBF - Low Power Comparator with Reference

The LT6703CDC-3#TRPBF is a versatile micro-power comparator with an integrated voltage reference, designed and manufactured by Linear Technology. This high-functioning component is well-suited for portable and battery-powered applications where power efficiency is paramount. The LT6703 operates with a very low quiescent current and features a wide supply voltage range, making it an excellent choice for various system designs.

Key Features


• Integrated Voltage Reference: The device comes with a precision 400mV reference voltage, which provides a stable comparison threshold and simplifies the design process.

• Low Current Consumption: With a quiescent current of just 6.5μA, the LT6703 is optimized for battery-powered and low power systems, helping to extend battery life.

• Wide Operating Voltage Range: The comparator is designed to function over a broad supply voltage range from 2.5V to 5.5V, accommodating various power sources and ensuring compatibility with both 3V and 5V systems.

• Open-Collector Output: The open-collector output allows for level shifting and load sharing, making it easier to interface with other components in the system.

• Temperature Range: The device is operational over a temperature range of -40°C to 125°C, ensuring reliability and performance under extreme conditions.

Applications


• Battery Monitoring

• Power Supply Control

• Threshold Detection and Signal Conditioning

• Window Comparators

• Portable and Compact Devices

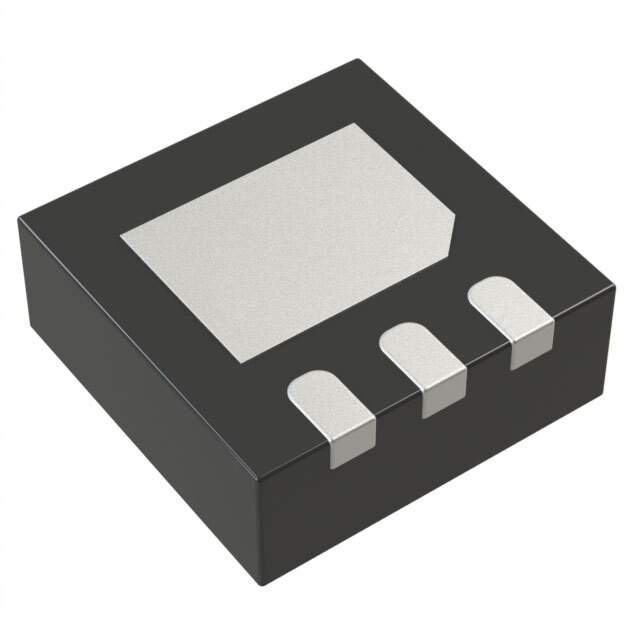

The LT6703CDC-3#TRPBF is housed in a compact 6-lead DFN package, which is ideal for space-constrained applications. Its small footprint and low-profile design enable it to be easily integrated into various electronic systems without compromising performance. Whether it's for industrial, automotive, or consumer electronics, the LT6703 provides a reliable and efficient solution for voltage comparison and system monitoring tasks.

Overall, the LT6703CDC-3#TRPBF from Linear Technology is a high-quality, low-power comparator that offers designers a combination of precision, efficiency, and ease of use, making it a smart choice for a wide range of applications.
