Analog Devices Inc. ADCMP580BCPZ-RL7 Ultra-Fast Comparator

The ADCMP580BCPZ-RL7 is a cutting-edge ultra-fast comparator designed and manufactured by Analog Devices Inc., a leader in high-performance analog technology. This precision device is engineered to deliver rapid signal comparison with minimal delay, making it an ideal choice for high-speed signal processing applications.

Key Features:

• Ultra-Fast Propagation Delay: The ADCMP580BCPZ-RL7 boasts an impressive propagation delay of typically 280 ps, ensuring swift and responsive signal comparison for critical timing applications.
• Low Dispersion: With less than 50 ps overdrive dispersion and 5 ps/mV slew rate dispersion, this comparator provides consistent performance that is crucial for maintaining signal integrity in high-speed systems.
• PECL and CML Outputs: It features both Positive Emitter-Coupled Logic (PECL) and Current Mode Logic (CML) outputs, offering versatility in interfacing with different digital logic families.
• Single Supply Operation: The device operates on a single 3.3 V supply, simplifying power management in system design.
• Adjustable Hysteresis: Users can set the desired hysteresis level via external resistors, allowing for fine-tuning of the comparator's performance to match specific application needs.
• Latch Function: A latch input is provided, giving users control over the output state for added flexibility in signal processing.

Applications:

The ADCMP580BCPZ-RL7 is well-suited for a range of high-speed applications including:

• Automatic Test Equipment (ATE)
• High-speed data acquisition systems
• Clock and data recovery circuits
• Pulse and square wave shaping
• High-speed instrumentation

Package and Quality:

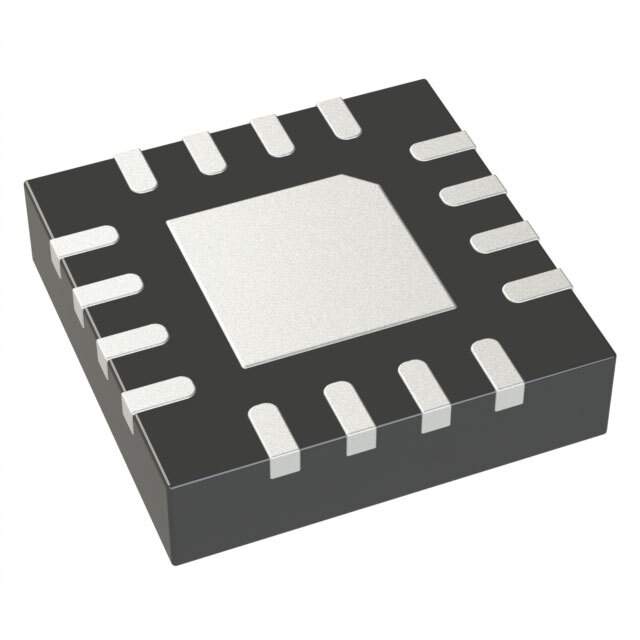

This comparator comes in a compact 3 mm x 3 mm, 16-lead LFCSP (Lead Frame Chip Scale Package) which is designed for space-constrained applications while providing excellent thermal performance. Analog Devices Inc. adheres to stringent quality control measures, ensuring that each ADCMP580BCPZ-RL7 meets the highest standards of reliability and performance.

Conclusion:

With its ultra-fast response time, low dispersion, and flexible output options, the ADCMP580BCPZ-RL7 from Analog Devices Inc. is an exceptional solution for designers who require the highest speed and precision in signal comparison tasks. Its robust feature set and dependable performance make it a go-to component for advanced electronic systems.
