Linear Technology's LTC1733EMSE: A High-Efficiency, Single Cell Li-Ion Battery Charger

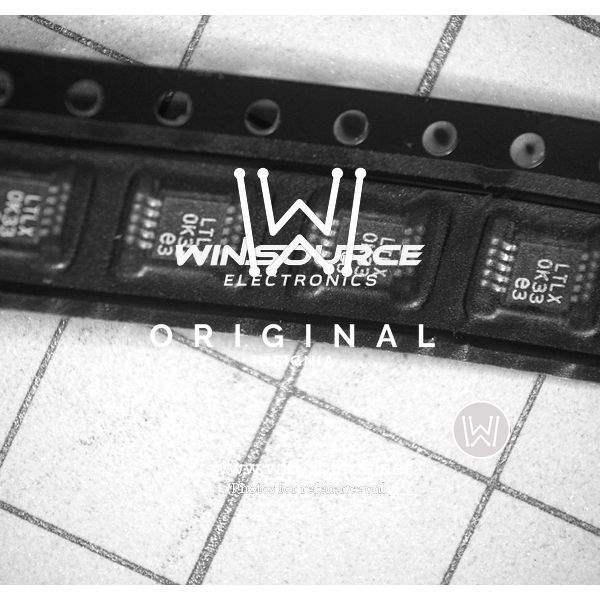

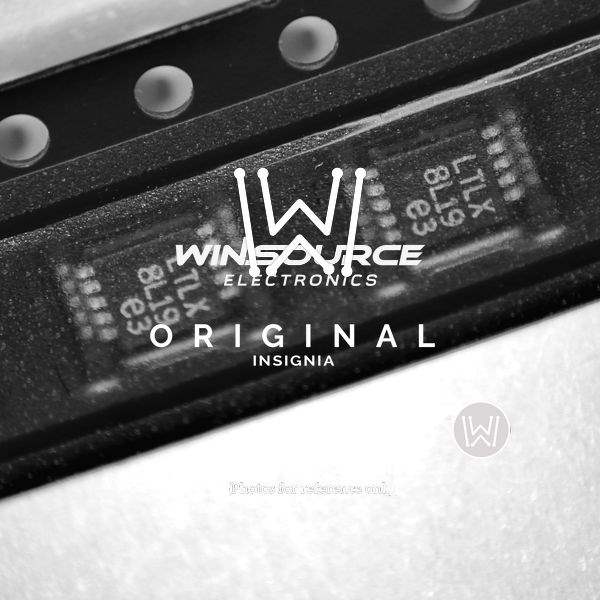

The LTC1733EMSE by Linear Technology is an advanced single cell lithium-ion battery charger designed to provide efficient and reliable charging for portable electronic devices. This sophisticated integrated circuit (IC) is housed in a compact MSOP-10 package, making it an ideal choice for space-constrained applications.

The LTC1733EMSE boasts an impressive array of features that ensure the safe and efficient charging of lithium-ion batteries. With its programmable charge current up to 1A, the device can accommodate a wide range of battery capacities, making it versatile for various applications. The charging voltage is fixed at 4.2V, which is the optimal charging voltage for most single-cell Li-ion batteries, ensuring maximum energy density and battery life.

One of the key advantages of the LTC1733EMSE is its high efficiency, which is achieved through the use of a synchronous rectification topology. This design minimizes power loss during charging, thereby reducing heat generation and improving overall system reliability. Additionally, the charger features a low dropout voltage, allowing it to continue charging the battery even under low input voltage conditions.

The LTC1733EMSE also incorporates a comprehensive suite of safety features to protect both the battery and the charger. These include automatic recharge, preconditioning of deeply discharged batteries, and a shutdown mode that reduces the supply current to 15uA, enhancing battery life. Overvoltage protection safeguards the battery from being overcharged, while thermal regulation prevents overheating during the charging process.

For ease of use, the LTC1733EMSE offers a status indication feature through its CHRG pin, which allows users to monitor the charging process. A logic level high on this pin indicates that charging is in progress, while a low level signifies that the charging cycle is complete.

In summary, the LTC1733EMSE from Linear Technology is a highly efficient, feature-rich charging solution for single-cell lithium-ion batteries. Its compact size, coupled with its advanced safety features and high charging efficiency, makes it an excellent choice for designers looking to incorporate a reliable battery charging system into their portable electronic devices.
