Product Overview: LTC3109EGN#PBF

The LTC3109EGN#PBF is a highly integrated DC/DC converter designed by Linear Technology, now part of Analog Devices, specifically tailored for energy harvesting and low power applications. This advanced power management IC is capable of extracting and managing minute amounts of power from thermoelectric generators, solar cells, and other low voltage sources, making it an ideal solution for extending battery life or even for battery-less operations in a variety of applications.

Key Features

• Ultralow Start-Up Voltage: The LTC3109EGN#PBF can start up from voltages as low as 30mV, which is a critical feature for energy harvesting from very low voltage sources.
• Auto-Polarity: It can seamlessly rectify inputs with polarity inversion without requiring additional circuitry, thus simplifying the design and reducing the component count.
• High Efficiency: The converter offers a high efficiency power management solution, which is essential for maximizing the energy harvested from the source.
• Multiple Output Voltages: It provides selectable output voltages of 2.35V, 3.3V, 4.1V, or 5V, granting flexibility to power a wide range of devices and components.
• Power Good Output: This feature indicates when the output voltage is within regulation, which is useful for sequencing loads and managing power in complex systems.

Applications

The LTC3109EGN#PBF is versatile and can be used in a broad spectrum of applications, including but not limited to:

• Wireless Sensor Networks
• Energy Harvesting Systems
• Industrial Monitoring
• Remote Power Supplies
• Portable and Wearable Electronics

Reliability and Packaging

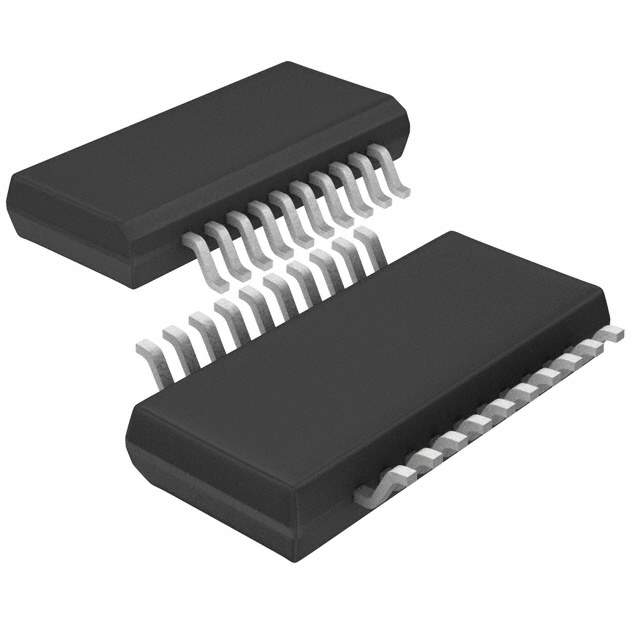

The device is offered in a compact 20-lead SSOP package, which is suitable for space-constrained applications. The LTC3109EGN#PBF is also characterized for operation from -40°C to 125°C, ensuring reliable performance across a wide range of environmental conditions.

In summary, the LTC3109EGN#PBF from Linear Technology is a sophisticated, highly efficient power management solution that is ideal for applications where energy harvesting is key to powering small, low power devices. Its ability to operate with minimal input voltages and its versatile output options make it a prime choice for designers looking to create sustainable and innovative power systems.
