Products specifications

Categories Integrated Circuits
Manufacturer Linear Technology
Packaging Tube/Rail
Status Active
Purpose Step-Down
Topology Buck
Output Type Adjustable
Number of Outputs 1
Minimum Input Voltage 4V
Maximum Input Voltage 15V
Nominal Output Voltage (Min/Fixed) 0.6V
Maximum Output Voltage 14.85V
Output Current 5A
Frequency - Switching 1MHz
Synchronous Rectifier Yes
Temperature Range - Operating -40°C to 85°C (TA)
Mounting SMD (SMT)
Case / Package 24-QFN (4x4)
Win Source Part Number 97189-LTC3605EUF
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LTC3605EUF CAD Model

Description

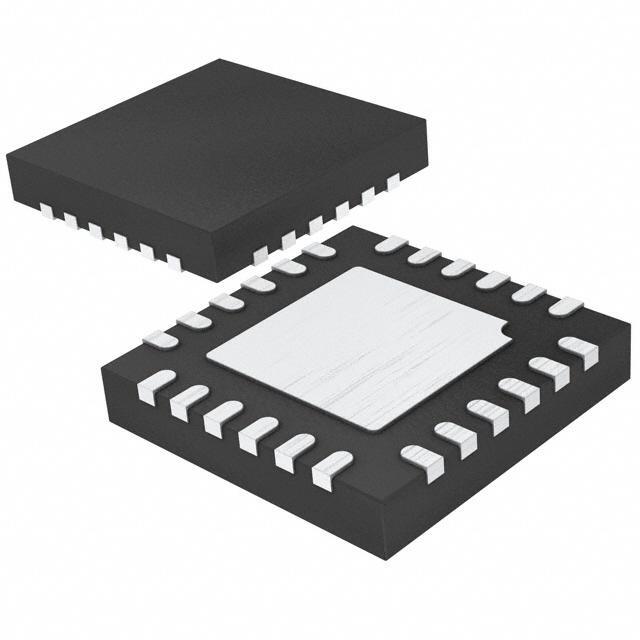

Linear Technology's LTC3605EUF - High Efficiency, Synchronous Step-Down Regulator

The LTC3605EUF from Linear Technology is a high-performance, synchronous step-down regulator that delivers continuous output currents up to 4A with a voltage input range of 4V to 20V. This makes it an ideal solution for a variety of applications, including portable devices, networking equipment, and industrial systems where efficiency and board space are critical concerns.

Designed with a constant-frequency, current mode architecture, the LTC3605EUF provides users with a stable and low noise operation, which is essential for sensitive RF and precision analog applications. The operating frequency is selectable from 300kHz to 4MHz, allowing the use of small, low-cost capacitors and inductors. Additionally, the higher frequency operation reduces the overall footprint of the power supply design.

The LTC3605EUF incorporates internal switches with an R<sub>DS(ON) of only 45mΩ and 70mΩ, which contributes to its high efficiency that can reach up to 95%. This efficiency reduces power loss and improves thermal performance, extending the life of the product. Moreover, the device features a 'Burst Mode' operation that enhances efficiency at light loads, making it suitable for battery-powered systems where extending run-time is crucial.

With its adjustable output voltage range from 0.6V to 5.5V, the LTC3605EUF is versatile and can cater to a wide array of power requirements. It also includes a 1% output voltage accuracy that ensures precise regulation for critical applications. In addition, the device offers a range of protective features such as overvoltage protection, overtemperature protection, and a power good flag that safeguards the system from abnormal operating conditions.

Available in a compact 24-lead QFN package, the LTC3605EUF is designed to minimize the solution footprint while providing robust power management. Its thermal performance is enhanced with an exposed pad for better heat dissipation. For designers looking for a high-efficiency, flexible, and reliable step-down regulator, the LTC3605EUF is an excellent choice that balances performance with space-saving integration.
