LTC3736EGN#PBF

Part No LTC3736EGN#PBF
Manufacturer Linear Technology
Catalog PMIC - Voltage Regulators - DC DC Switching Controllers
Description IC REG CTRLR BUCK 24SSOP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Linear Technology
Packaging Tube/Rail
Status Active
Output Type Transistor Driver
Purpose Step-Down
Topology Buck
Number of Outputs 2
Output Phases 2
Supply Voltage - Operating 2.75 V to 9.8 V
Frequency - Switching 300kHz to 750kHz
Duty Cycle (Max) 100%
Synchronous Rectifier Yes
Clock Sync Yes
Control Features Current Limit, Enable, Power Good, Soft Start, Tracking
Temperature Range - Operating -40°C to 85°C (TA)
Case / Package 24-SSOP
Win Source Part Number 020608-LTC3736EGN#PBF
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name LTC3736
Introduction Date March 12, 2004
ECCN EAR99
Country of Origin Malaysia
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian LTC3736EGN#PBF CAD Model

Description

Product Overview: LTC3736EGN#PBF

The LTC3736EGN#PBF is a high-performance, dual-output synchronous step-down switching regulator controller from Linear Technology. This advanced power management integrated circuit (PMIC) is designed to drive all N-channel power MOSFET stages, which is ideal for applications requiring high efficiency and fast transient response.

Key Features

  • Versatile Power Supply: The LTC3736EGN#PBF operates from a 4.5V to 28V input voltage range, making it suitable for a wide array of power sources, including intermediate bus voltages and battery-powered applications.
  • High-Efficiency: With its synchronous operation, the device provides efficiencies up to 95%, reducing power loss and heat generation.
  • Adjustable Switching Frequency: Users can set the switching frequency from 250kHz to 750kHz or synchronize it to an external clock, providing flexibility in optimizing the performance to meet specific application requirements.
  • Current Mode Operation: The current mode operation ensures excellent line and load transient response.
  • Independent Tracking: The LTC3736EGN#PBF offers independent track/soft-start pins for each channel, allowing for customizable sequencing or tracking of multiple supply voltages.
  • Robust Protection Features: It includes overvoltage protection, overcurrent protection, and foldback current limiting to safeguard the system under abnormal conditions.

Applications

  • Point of Load Power Supplies
  • Distributed Power Systems
  • Industrial and Automotive Electronics
  • Telecommunications Infrastructure
  • Data Communication Systems

Package and Quality

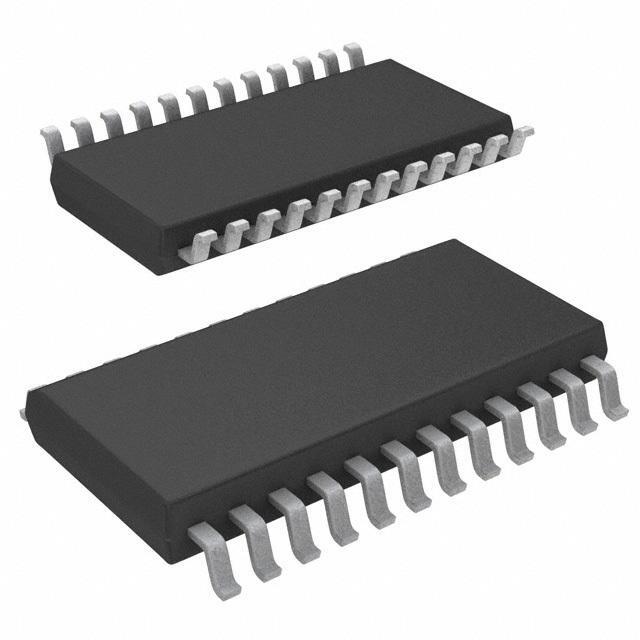

The LTC3736EGN#PBF comes in a 24-pin SSOP package, which is compact and suitable for space-constrained applications. Linear Technology ensures high-quality standards, and this product is RoHS compliant, catering to environmentally conscious product requirements.

Overall, the LTC3736EGN#PBF by Linear Technology is a highly reliable and efficient solution for modern electronic systems requiring dual output voltage regulation with advanced protection and performance features.
