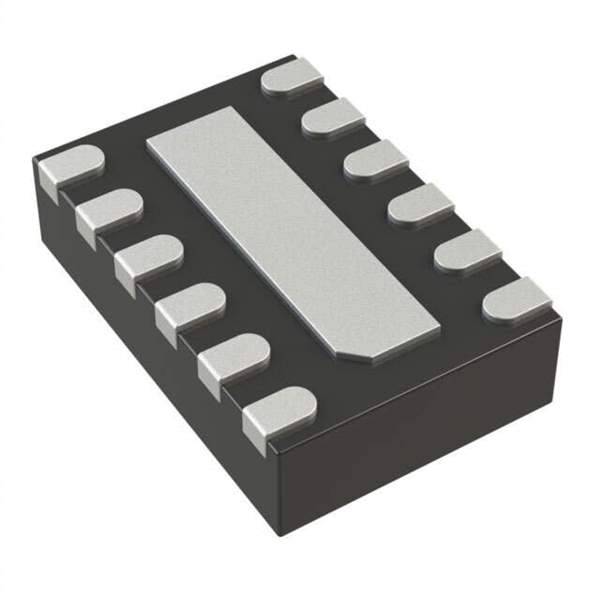

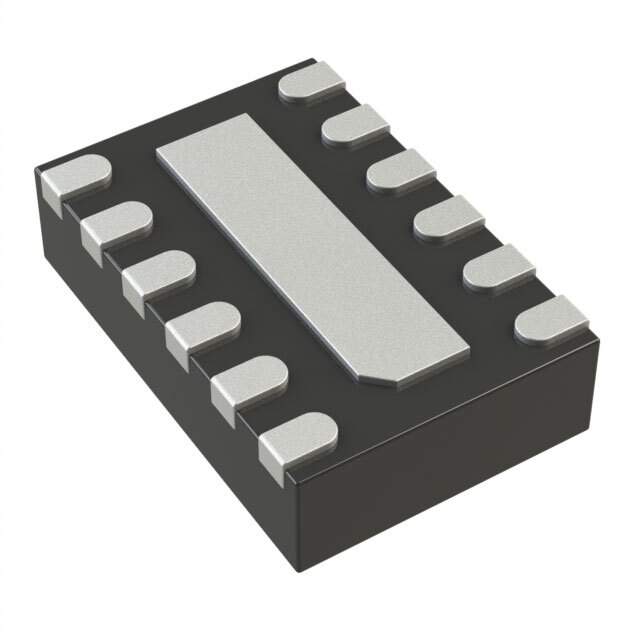

LTC3854EDDB#TRPBF - High Performance Step-Down Switching Regulator Controller

The LTC3854EDDB#TRPBF is a high-performance, low quiescent current synchronous step-down DC/DC controller from Linear Technology, designed to drive all N-channel power MOSFET stages in a point-of-load regulation system. This compact and efficient device is ideal for a wide range of applications including telecom and datacom systems, automotive electronics, industrial control units, and distributed power systems.

Key Features

• Wide Input Voltage Range: The LTC3854 operates over a 4.5V to 38V input voltage range, making it suitable for a variety of supply voltages.
• Adjustable Operating Frequency: Users can set the operating frequency anywhere from 50kHz to 900kHz with an external resistor or synchronize it to an external clock.
• High Efficiency: Its low quiescent current and synchronous operation enable efficiencies as high as 95%, which is critical for thermal management and reliability.
• Robust Output Voltage: The output voltage is adjustable from 0.8V to VIN, ensuring broad compatibility with various microprocessors, FPGAs, and other digital ICs.
• Powerful Drive Capability: The LTC3854EDDB#TRPBF can drive high gate capacitance MOSFETs, which is essential for high current applications.
• Stable Operation: It features a phase-locked loop for stable operation even with varying input voltages and output loads.
• Protection Features: The device includes overvoltage, undervoltage, and overcurrent protection, safeguarding the system under abnormal conditions.
• Compact Package: It comes in a small 10-lead (3mm × 3mm) DFN package, which is excellent for space-constrained applications.

Applications

The versatility of the LTC3854EDDB#TRPBF makes it ideal for a range of applications, including:

• Portable Computing Devices
• Networking Equipment
• Industrial and Automotive Electronics
• Point-of-Load Supplies

Overall, the LTC3854EDDB#TRPBF is a powerful solution for system designers looking to create compact, efficient, and reliable power supply systems. Its robust feature set and ease of use make it an excellent choice for a wide array of power management applications.
