LTC5509ESC6#TRMPBF: High Frequency RF Power Detector

The LTC5509ESC6#TRMPBF is a state-of-the-art RF power detector designed by Linear Technology, now part of Analog Devices, to offer precise and reliable measurement of signal strength in a variety of wireless applications. This high-frequency component is particularly well-suited for power control in wireless systems, signal strength detection for handsets, transmitter antenna VSWR protection, and general RF power monitoring.

With its wide frequency range from 300MHz to 7GHz, the LTC5509ESC6#TRMPBF can accurately detect signal power levels from -34dBm to 6dBm, making it versatile enough to be used across various communication bands including GSM, CDMA, WCDMA, TD-SCDMA, WiMAX, WLAN, and LTE. This broad frequency range and dynamic range make it an excellent choice for both current and emerging RF applications.

The device operates with a single supply voltage from 2.7V to 6V, which allows for integration into a wide range of systems without the need for complex power supply arrangements. Its low operating current of 5.5mA (typical) also makes it suitable for battery-powered devices where power efficiency is crucial.

One of the key features of the LTC5509ESC6#TRMPBF is its fast response time. The detector provides a response time of 1µs, enabling rapid detection of power level changes which is essential for real-time applications and agile systems that require quick adaptation to varying signal conditions.

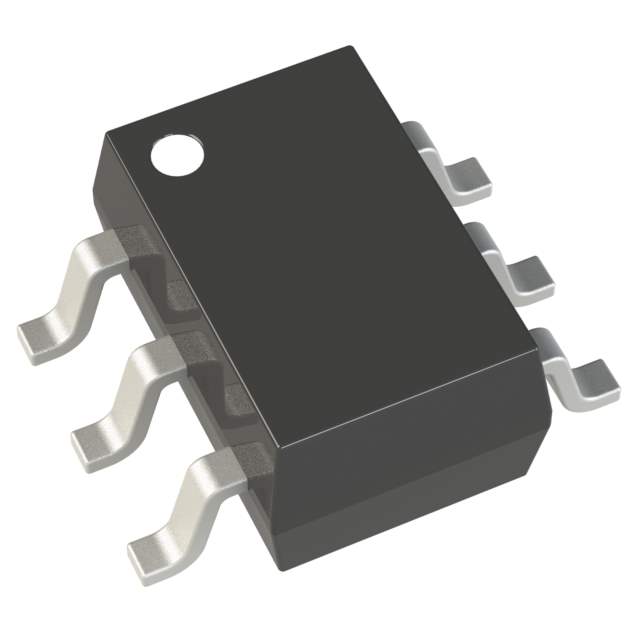

The compact package, a 6-lead SC70, ensures minimal footprint on the circuit board, which is vital for space-constrained designs. Additionally, the part is available in a tape and reel format under the part number LTC5509ESC6#TRMPBF, which is ideal for automated manufacturing processes, facilitating high-volume production and ensuring consistency and reliability across batches.

In conclusion, the LTC5509ESC6#TRMPBF from Linear Technology is a highly efficient, accurate, and versatile RF power detector that offers exceptional performance in a wide range of wireless applications. Its compact size, low power consumption, and fast response time make it an excellent choice for designers looking to enhance their RF systems with precise power detection capabilities.
