Linear Technology's LTC6802IG-2#3ZZTRPBF

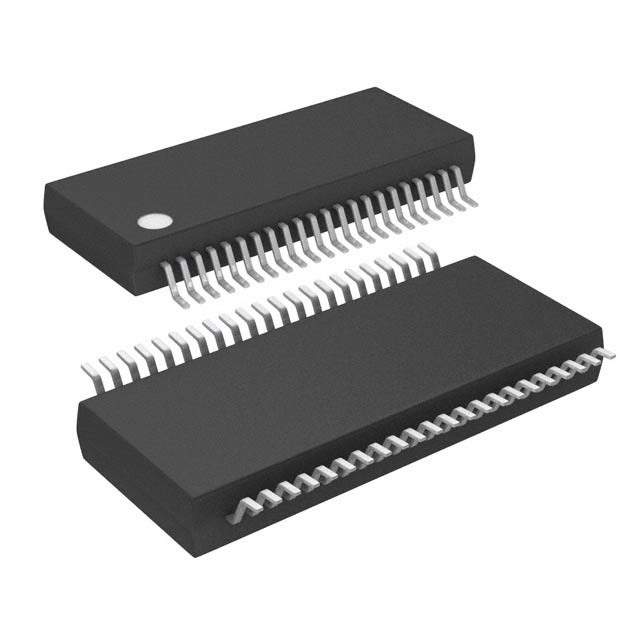

The LTC6802IG-2#3ZZTRPBF is a high-precision battery monitoring IC designed by Linear Technology to cater to the advanced requirements of battery stack monitoring in electric vehicles, energy storage systems, and other applications where multiple battery cells need to be monitored simultaneously. This integrated circuit is specifically engineered to accurately measure up to 12 individual battery cell voltages with a remarkable measurement accuracy of 0.25%.

Constructed with robustness in mind, the LTC6802IG-2#3ZZTRPBF operates in a wide temperature range, making it suitable for harsh environments. Its temperature range from -40°C to 85°C ensures reliable performance under extreme conditions. The device comes in a compact, surface-mount 44-lead SSOP package, which is ideal for space-constrained applications.

One of the standout features of the LTC6802IG-2#3ZZTRPBF is its capability to daisy-chain multiple ICs in a series, allowing for the monitoring of long strings of batteries without the need for additional isolation components. This reduces system complexity and cost while improving reliability. The daisy-chain configuration also simplifies the communication interface, requiring only a single insulation barrier for data transfer to the system's microcontroller.

The device supports a fast measurement mode, capable of measuring all cell voltages within 13ms, which is crucial for real-time monitoring and control. It also includes passive cell balancing, which can be controlled via an external microcontroller to equalize the charge on all cells, thereby extending the battery pack's life and performance.

To ensure data integrity and safety, the LTC6802IG-2#3ZZTRPBF features a redundant voltage reference, which is used to verify the primary voltage reference. This ensures accurate cell voltage readings and contributes to the overall safety of the battery management system. Additionally, it includes comprehensive self-test capabilities, which can be initiated by the user to verify the proper functioning of the IC.

In conclusion, the LTC6802IG-2#3ZZTRPBF from Linear Technology is a sophisticated battery monitoring solution that offers precision, durability, and scalability for complex battery systems. Its advanced features make it an essential component for ensuring the safe and efficient operation of high-performance battery packs.
