Products specifications

Categories Power Supplies - Board Mount
Manufacturer Linear Technology
Series μModule
Packaging Tray
Type Non-Isolated PoL Module
Number of Outputs 1
Input Voltage MIN 4.5V
Voltage Input MAX 26.5V
Voltage - Output 1 0.8 ~ 5 V
Current - Output (Maximum) 6A
Applications ITE (Commercial)
Features OCP, OVP, SCP, UVLO
Operating Temperature Range -40°C ~ 125°C
Mounting SMD

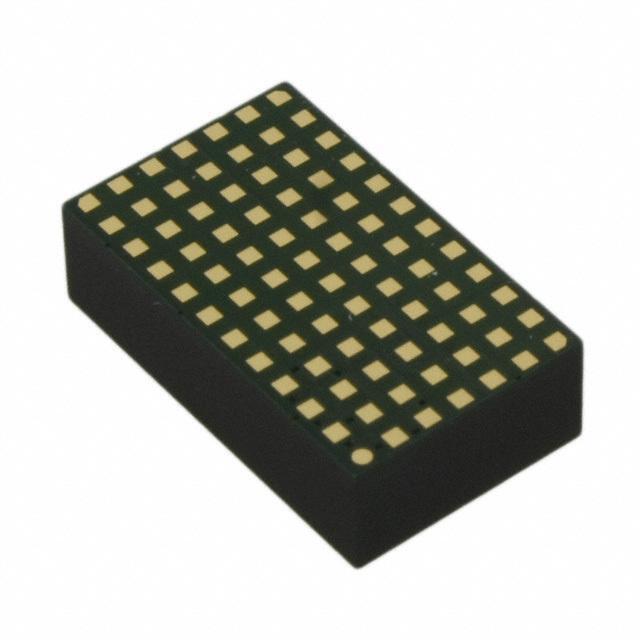

Package 84-BLGA Module
Size 0.59" L x 0.35" W x 0.17" H (15.0mm x 9.0mm x 4.3mm)
Manufacturer Package 84-LGA (15x9)
Manufacturer Homepage www.linear.com
Win Source Part Number 754477-LTM4618EV#PBF
Popularity Medium
Supply and Demand Status Limited
Family Name LTM4618
Introduction Date July 09, 2010
Country of Origin Malaysia
Halogen Free Compliant
Estimated EOL Date 2030
Ultra Librarian 3D Model Ultra Librarian LTM4618EV#PBF CAD Model

Description

Linear Technology's LTM4618EV#PBF: A High-Efficiency, µModule Regulator

The LTM4618EV#PBF is a high-performance DC/DC µModule (micromodule) regulator designed by Linear Technology, now part of Analog Devices. This compact, encapsulated product integrates the inductor, power switches, DC/DC controller, and other supporting components within a single package, simplifying the design process and reducing the footprint on the PCB.

Key Features:

  • Wide Input Voltage Range: The LTM4618EV#PBF operates efficiently with an input voltage range of 2.7V to 5.5V, making it versatile for various applications.
  • Adjustable Output Voltage: Users can adjust the output voltage from 0.6V to 5V, providing flexibility for different circuit requirements.
  • High Efficiency: With an integrated switching regulator, the device achieves high efficiency, which is essential for thermal management and energy savings.
  • Compact Design: The µModule technology encapsulates all the active components, offering a space-saving solution that is beneficial for densely populated boards or small form factor applications.
  • Integrated Heat Sink: The LTM4618EV#PBF is equipped with a built-in heat sink that enhances thermal performance and reliability under various operating conditions.

Applications:

The LTM4618EV#PBF is suitable for a wide range of applications including telecommunications, networking equipment, industrial systems, and battery-powered devices. Its ability to provide precise regulation and high efficiency makes it an excellent choice for sensitive electronic systems where stable power delivery is critical.

Product Specifications:

Parameter Value Input Voltage Range 2.7V to 5.5V Output Voltage Range 0.6V to 5V Package Type LGA Operating Temperature Range -40°C to +125°C

With its robust design, the LTM4618EV#PBF ensures a high-performance power management solution that is both efficient and reliable, making it an excellent choice for designers looking to optimize their power systems.
