Products specifications Report Issue?

Categories Uncategorized
Manufacturer Linear Technology
Popularity Low
Supply and Demand Status Balance
Win Source Part Number 843448-LTM8053IY
Ultra Librarian 3D Model Ultra Librarian LTM8053IY CAD Model

Description

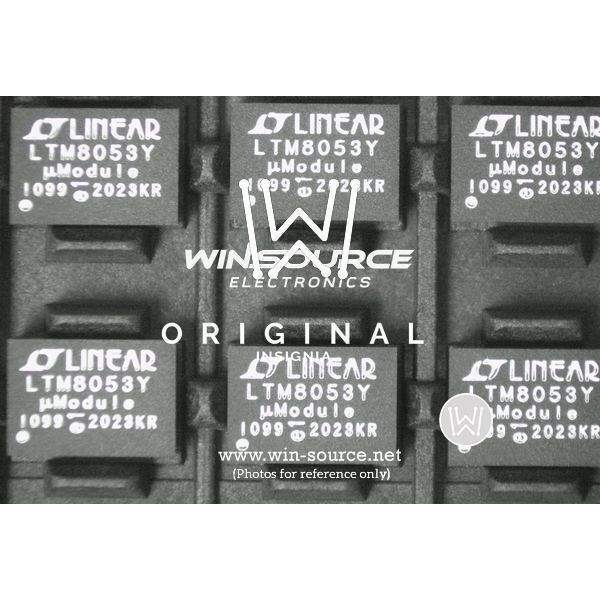

Introducing the LTM8053IY – A High-Efficiency, Silent Switcher µModule Regulator from Linear Technology

The LTM8053IY is a feature-rich, highly efficient, step-down regulator module designed by Linear Technology to cater to a wide range of power supply applications. This innovative µModule (micro module) regulator integrates the inductor, power switches, DC/DC controller, and all the supporting components in a compact, thermally enhanced system-in-package (SiP). The LTM8053IY is engineered to deliver high performance with minimal noise, making it an ideal solution for sensitive electronics that demand a quiet power supply.

Key Features of the LTM8053IY:

  • Wide Input Voltage Range: With an operating input voltage range from 3.6V to 58V, the LTM8053IY is versatile and can be used in various applications, from automotive to industrial systems that require a wide input range.
  • Adjustable Output Voltage: Users can set the output voltage from 0.8V to 24V, making it suitable for powering a broad array of devices.
  • High Efficiency: The Silent Switcher architecture minimizes EMI emissions while maintaining high efficiency, which is essential for meeting stringent electromagnetic compliance (EMC) standards.
  • Robust Thermal Performance: The LTM8053IY comes in a thermally enhanced, over-molded land grid array (LGA) package that ensures excellent heat dissipation and reliable operation even in thermally challenging environments.
  • Integrated Design: By including the inductor and all necessary components within the package, the LTM8053IY simplifies design and reduces the PCB footprint, thus accelerating time-to-market for end products.

Applications:

The LTM8053IY is well-suited for a variety of applications such as:

  • Telecommunications and networking equipment
  • Industrial and automotive electronics
  • Battery-powered devices
  • Data storage and computing systems

With its advanced design and integrated approach, the LTM8053IY from Linear Technology stands out as a reliable and efficient power management solution. Its ease of use and high-performance characteristics make it an excellent choice for designers looking to streamline their power supply designs while ensuring robust operation across a wide range of conditions.
