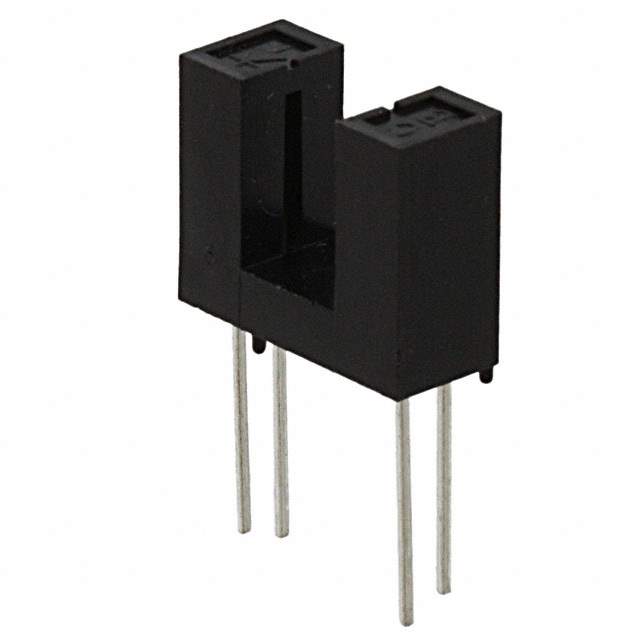

LTH-301-05 Real Image
Same model may have multiple batches, images only for reference.

LTH-301-05

Part No LTH-301-05
Manufacturer Lite-On Inc.
Catalog Optical Sensors - Photointerrupters - Slot Type - Transistor Output
Description PHOTOINTERRUPTER SWITCH PTR SLOT
Datasheet
LTH-301-05 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Lite-On Inc.
Packaging Bulk
Status Active
Sensing Distance 0.236" (6mm)
Sensing Method Transmissive
Continuous forward current- Max 20mA
VCEO Maximum Collector-Emitter Breakdown Voltage 30V
Response Time 4μs, 4μs
Temperature Range - Operating -25°C to 85°C
Mounting Through Hole
Type Unamplified
Win Source Part Number 1064271-LTH-301-05
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LTH-301-05 CAD Model

Description

The LTH-301-05 from Lite-On Inc. is an unamplified sensor with a sensing distance of 0.236" (6mm).

  • Manufacturer: Lite-On Inc.
  • Type: Unamplified Sensor
  • Sensing Distance: 0.236" (6mm)
  • Sensing Method: Transmissive
  • Response Time: 4μs
  • Temperature Range: -25°C to 85°C
  • Maximum Collector-Emitter Breakdown Voltage: 30V
  • Applications: Sensors and Transducers
