LTV-817S Real Image LTV-817S real image2203
Same model may have multiple batches, images only for reference.
LTV-817S Real Image LTV-817S real image2203
LTV-817S Real Image LTV-817S real image2203
Same model may have multiple batches, images only for reference.

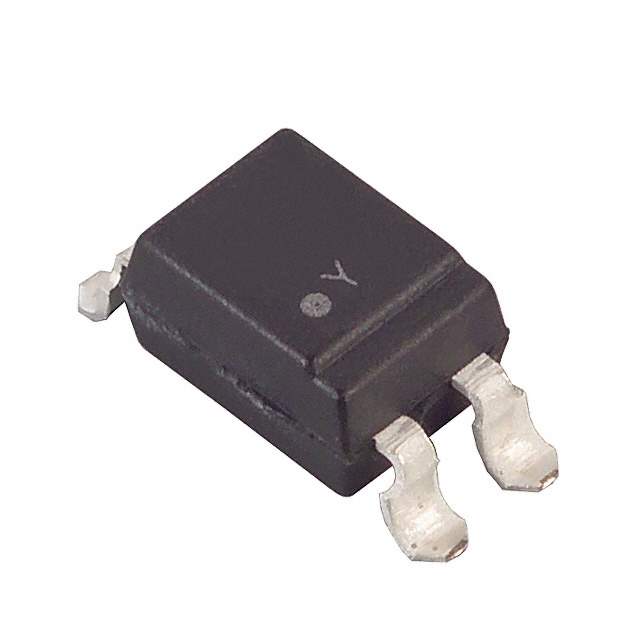

LTV-817S

Part No LTV-817S
Manufacturer Lite-On Inc.
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISOLATR 5KV TRANSISTOR 4-SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Lite-On Inc.
Packaging Reel - TR
Status Active
Number of Channels 1
Isolation Voltage 5000Vrms
Minimum DC Current Transfer Ratio 50% @ 5mA
Maximum DC Current Transfer Ratio 600% @ 5mA
Rise and Fall Time 4μs, 3μs
Input Type DC
Output Type Transistor
Maximum Output Voltage 35V
Channel Output Current 50mA
Forward Voltage 1.2V
Continuous forward current- Max 50mA
Vce Saturation (Max) 200mV
Temperature Range - Operating -30°C to 110°C
Mounting SMD (SMT)
Case / Package 4-SMD
Win Source Part Number 072712-LTV-817S
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Application Field Used in Signal Processing, Computers & Computer Peripherals
Ultra Librarian 3D Model Ultra Librarian LTV-817S CAD Model

Description

The 072712-LTV-817S is an isolator manufactured by Lite-On Inc.

  • Popularity: High
  • Supply and Demand: Sufficient
  • Mounting Type: SMD (SMT)
  • Isolation Voltage: 5000Vrms
  • Forward Voltage: 1.2V
  • Channels: 1
  • Maximum Output Voltage: 35V
  • Minimum DC Current Transfer Ratio: 50% @ 5mA
  • Maximum DC Current Transfer Ratio: 600% @ 5mA
  • Rise Time: 4μs
  • Fall Time: 3μs
  • Channel Output Current: 50mA
  • Continuous Forward Current: Max 50mA
  • Common Applications: Signal processing, computers & computer peripherals
