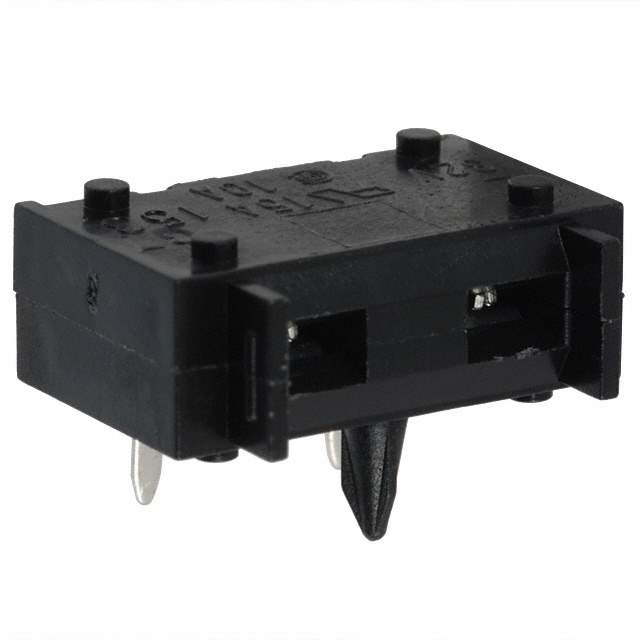

01530007Z Real Image
Same model may have multiple batches, images only for reference.

01530007Z

Part No 01530007Z
Manufacturer Littelfuse Inc.
Catalog Fuseholders
Description FUSE HOLDER BLADE 32V 15A PCB / PCB MOUNT FUSE HOLDER FOR MINI STYLE BLADE FUSE
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Fuseholder Type Holder
Fuse Type Blade
For Use With/Related Products MINI ATC, MINI ATO
Fuse Size 0.43" L x 0.15" W x 0.64" H (10.92mm x 3.81mm x 16.25mm)
Number of Circuits 1
Voltage 32V
Current Rating (Amps) 15A
Mounting Style Through Hole
Orientation Horizontal
Termination Style PC Pin
Contact Material Copper Alloy
Contact Finish Tin
Manufacturer Pack Quantity 500
MSL Level Not Applicable
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 808569-01530007Z
Ultra Librarian 3D Model Ultra Librarian 01530007Z CAD Model

Description

The Littelfuse Inc. 808569-01530007Z is a blade fuse holder from Littelfuse Inc.

  • Termination Style: PC pin
  • Mounting Style: through-hole
  • Contact Finish: tin
  • Contact Material: copper alloy
  • Compatible Fuses: MINI ATC and MINI ATO
  • Fuse Size: 0.43" L x 0.15" W x 0.64" H (10.92mm x 3.81mm x 16.25mm)
  • Circuits: one
  • Voltage Rating: 32V
  • Current Rating: 15A
  • Supply and Demand Status: balanced
  • Manufacturer Pack Quantity: 500
  • MSL Level: not applicable
