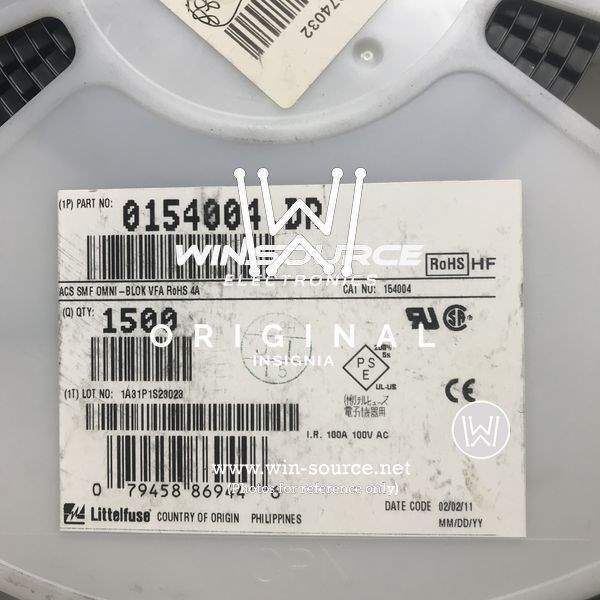

0154004.DR Real Image 0154004.DR label picture
Same model may have multiple batches, images only for reference.
0154004.DR Real Image 0154004.DR label picture
0154004.DR Real Image 0154004.DR label picture
Same model may have multiple batches, images only for reference.

0154004.DR

Part No 0154004.DR
Manufacturer Littelfuse Inc.
Catalog Fuses
Description Surface Mount Fuses
Datasheet
0154004.DR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Series OMNI-BLOK 154
Packaging Reel - TR
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating 4A
Voltage Rating - AC 125V
Voltage Rating - DC 125V
Response Time Fast
Package 2-SMD, Square End Block with Holder
Mounting Holder/Surface Mount
Breaking Capacity @ Rated Voltage 50A
Melting I2t 3.152
Approvals PSE, UL
Operating Temperature Range -55°C ~ 125°C
Size 0.383" L x 0.198" W x 0.150" H (9.73mm x 5.03mm x 3.81mm)
Resistance 0.016 Ohm
Win Source Part Number 1120474-0154004.DR
Manufacturer Homepage www.littelfuse.com
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Industrial, Safety
Ultra Librarian 3D Model Ultra Librarian 0154004.DR CAD Model

Description

The 0154004.DR from Littelfuse Inc. is a part of the OMNI-BLOK 154 series.

  • Win Source part number: 1120474
  • Packaging: reel-TR
  • Operating temperature range: -55°C to 125°C
  • Package: 2-SMD, square end block with a holder package
  • Current rating: 4A
  • Fuse type: board mount (cartridge style excluded)
  • Voltage rating: 125V AC and 125V DC
  • Response time: fast
  • Breaking capacity @ rated voltage: 50A
  • Melting I2t: 3.152
  • Approvals: PSE and UL
  • Mounting: holder/surface mount
  • Size: 0.383" L x 0.198" W x 0.150" H (9.73mm x 5.03mm x 3.81mm)
  • Resistance: 0.016 Ohm
  • Supply and demand status: balanced
