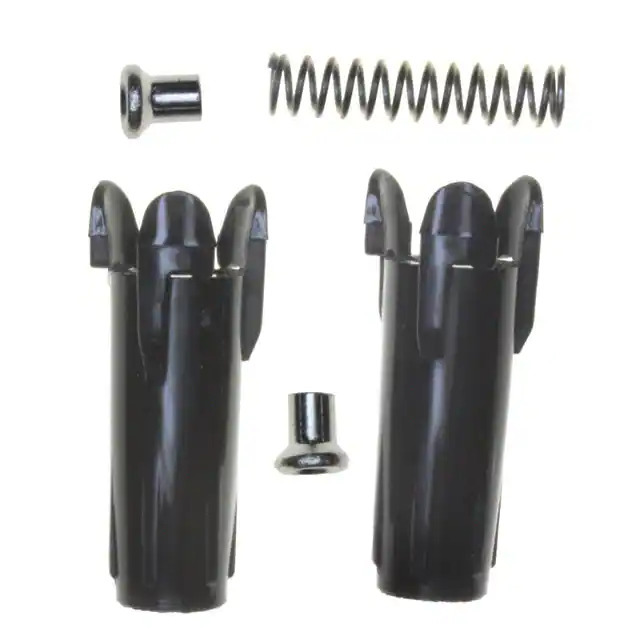

01550120ZXU Littelfuse Inc.
Same model may have multiple batches, images only for reference.

01550120ZXU

Part No 01550120ZXU
Manufacturer Littelfuse Inc.
Catalog Fuseholders
Description FUSE HOLDER CART 32V 20A IN LINE / Fuse Holder 20 A 32V 1 Circuit Cartridge Free Hanging (In-Line)
Datasheet
01550120ZXU Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuseholders
Mfr Littelfuse Inc.
Series 155
Package Bulk
Product Status Active
Mounting Type Free Hanging (In-Line)
Fuse Size 0.25" Dia x 1.26" L (6.35mm x 32mm)
Current Rating (Amps) 20 A
For Use With/Related Products 3AG, 1/4" x 1-1/4" (SFE-20)
Fuse Type Cartridge
Fuseholder Type Holder
Number of Circuits 1
Voltage 32V
Orientation -
Termination Style Crimp
Contact Material Brass
Contact Finish Nickel
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.8180
Win Source Part Number 1361493-01550120ZXU
Ultra Librarian 3D Model Ultra Librarian 01550120ZXU CAD Model

Description

The 1361493-01550120ZXU is a circuit protection fuseholder manufactured by Littelfuse Inc.

  • Series: 155
  • Packaging: Bulk
  • Mounting Style: Free Hanging (In-Line)
  • Current Rating: 20A
  • Contacts: Nickel Plated Brass
  • Termination Style: Crimp
  • Fuse Size: 3AG, 1/4" x 1-1/4" (SFE-20)
  • Voltage Rating: 32V
  • Fuse Dimensions: 0.25" diameter x 1.26" length (6.35mm x 32mm)
