Same model may have multiple batches, images only for reference.

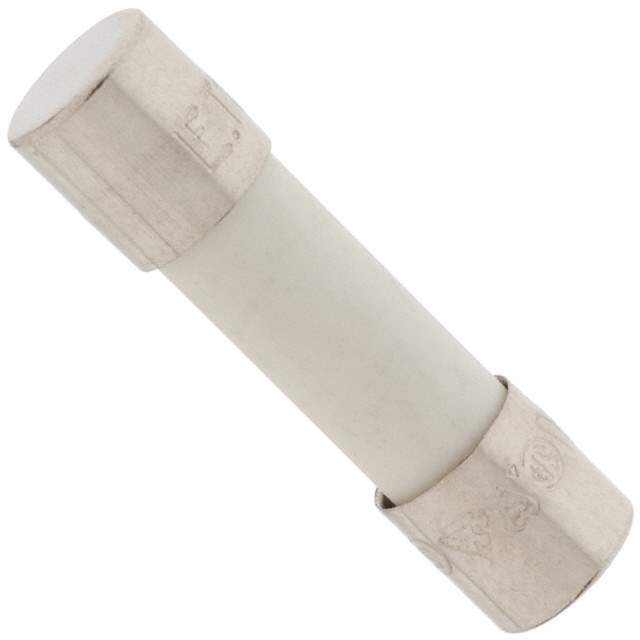

0216005.MXP Real Image
Same model may have multiple batches, images only for reference.

0216005.MXP

Part No 0216005.MXP
Manufacturer Littelfuse Inc.
Catalog Fuses
Description 216 Series, 5 x 20 mm, Fast-Acting Fuse | FUSE CERAMIC 5A 250VAC 5X20MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Bulk
Fuse Type Cartridge, Ceramic
Current Rating (Amps) 5A
Voltage Rating - AC 250V
Response Time Fast Blow
Manufacturer Package 5mm x 20mm
Mounting Style Holder
Breaking Capacity at Rated Voltage 1.5kA
Melting I2t 27.46
Approvals BSI, CCC, CE, CSA, KC, PSE, SEMKO, UR, VDE
Temperature Range - Operating -55°C ~ 125°C
Parts Dimension 0.205" Dia x 0.787" L (5.20mm x 20.00mm)
DC Cold Resistance 0.0183 Ohms
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Win Source Part Number 1120514-0216005.MXP
Manufacturer Homepage www.littelfuse.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 0216005.MXP CAD Model

Description

The 0216005.MXP is a ceramic cartridge type fuse from Littelfuse Inc.

  • Win Source Part Number: 1120514
  • Package: Bulk
  • Mounting Style: Holder
  • Voltage Rating: 250V AC
  • Response Time: Fast blow
  • DC Cold Resistance: 0.0183 Ohms
  • Current Rating: 5A
  • Breaking Capacity @ Rated Voltage: 1.5kA
  • Supply and Demand Status: Balanced
  • Manufacturer Pack Quantity: 1,000
