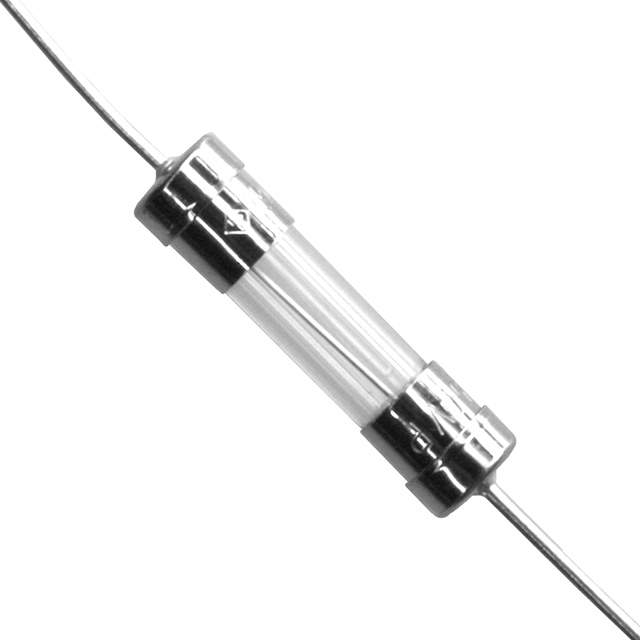

0217015.MXEP Real Image
Same model may have multiple batches, images only for reference.

0217015.MXEP

Part No 0217015.MXEP
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE GLASS 15A 250VAC 5X20MM / 217 Series, 5 x 20 mm, Fast-acting Fuse
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Packaging Bulk
Fuse Type Cartridge, Glass
Current Rating (Amps) 15A
Voltage Rating - AC 250V
Response Time Fast Blow
Manufacturer Package 5mm x 20mm (Axial)
Mounting Style Through Hole
Breaking Capacity at Rated Voltage 150A
Melting I2t 607.135
Approvals CE, PSE
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.228" Dia x 0.886" L (5.80mm x 22.50mm)
DC Cold Resistance 0.004 Ohms
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 806872-0217015.MXEP
Ultra Librarian 3D Model Ultra Librarian 0217015.MXEP CAD Model

Description

The Littelfuse Inc. 806872-0217015.MXEP is a fast blow cartridge glass fuse with a voltage rating of 250V AC.

  • Current Rating: 15A
  • Breaking Capacity: 150A @ rated voltage
  • DC Cold Resistance: 0.004 ohms
  • Melting I2t: 607.135
  • Dimension: 0.228" Dia x 0.886" L (5.80mm x 22.50mm)
  • Mounting Style: Through hole
  • Approvals: CE, PSE
  • Packaging: Bulk
  • Manufacturer Package: 5mm x 20mm (Axial)
  • Supply and Demand Status: Balanced
  • Manufacturer Pack Quantity: 1,000
  • Operating Temperature: -55°C to 125°C
  • MSL level: 1 (unlimited)
