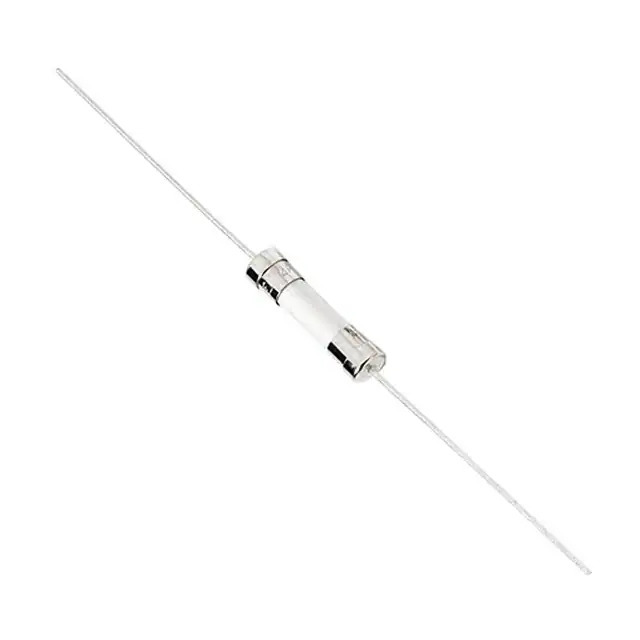

Same model may have multiple batches, images only for reference.
02200007DRT1P Littelfuse Inc.
Same model may have multiple batches, images only for reference.

02200007DRT1P

Part No 02200007DRT1P
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE GLASS 3A 350VAC 2AG / 3 A 350 V AC DC Fuse Cartridge, Glass Through Hole 2AG, 5mm x 15mm (Axial)
Datasheet
02200007DRT1P Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuses
Mfr Littelfuse Inc.
Series 220
Package Tape & Reel (TR)
Product Status Active
Mounting Type Through Hole
Fuse Type Cartridge, Glass
Current Rating (Amps) 3 A
Voltage Rating - AC 350 V
Response Time Slow Blow
Package / Case 2AG, 5mm x 15mm (Axial)
Breaking Capacity @ Rated Voltage 60A
Melting I²t 4.62
Approval Agency CE, CSA, PSE, UL
Temperature Range - Operating -55°C ~ 125°C
Color -
Size / Dimension 0.177" Dia x 0.571" L (4.50mm x 14.50mm)
DC Cold Resistance 0.0317 Ohms
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0020
Win Source Part Number 1361432-02200007DRT1P
Ultra Librarian 3D Model Ultra Librarian 02200007DRT1P CAD Model

Description

The 220 series from Littelfuse Inc. is a cartridge-type fuse designed for circuit protection.

  • Current Rating: 3A
  • Voltage Rating: 350V AC
  • Response Time: Slow Blow
  • Breaking Capacity: 60A @ rated voltage
  • Mounting Type: Through Hole
  • Packaging: Tape & Reel
