Same model may have multiple batches, images only for reference.

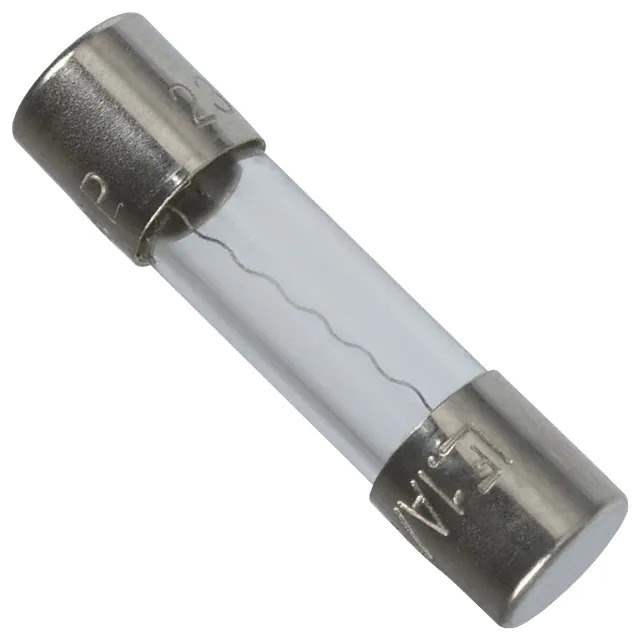

02341.25M Real Image
Same model may have multiple batches, images only for reference.

02341.25M

Part No 02341.25M
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE GLASS 1.25A 250VAC 5X20MM
Datasheet
02341.25M Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuses
Mfr Littelfuse Inc.
Series 234
Package Bulk
Product Status Obsolete
Mounting Type Requires Holder
Fuse Type Cartridge, Glass
Current Rating (Amps) 1.25 A
Voltage Rating - AC 250 V
Response Time Medium Blow
Package / Case 5mm x 20mm
Breaking Capacity @ Rated Voltage 100A
Melting I2t 3.48
Approval Agency CSA, K-MARK, METI, UL
Size / Dimension 0.205" Dia x 0.787" L (5.20mm x 20.00mm)
DC Cold Resistance 0.13 Ohms
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.10.0020
Win Source Part Number 743393-02341.25M
Ultra Librarian 3D Model Ultra Librarian 02341.25M CAD Model

Description

The 743393-02341.25M is an obsolete cartridge glass fuse from the 234 series by Littelfuse Inc.

  • Voltage Rating: 250 V AC
  • Breaking Capacity: 100A @ the rated voltage
  • Response Time: Medium blow
  • Melting I2t Value: 3.48
  • Size: 0.205" diameter x 0.787" length (5.20mm x 20.00mm)
  • DC Cold Resistance: 0.13 Ohms
  • Usage: Designed for use with a holder
  • Package: 5mm x 20mm
  • Standards: CSA, K-MARK, METI, and UL
