Same model may have multiple batches, images only for reference.

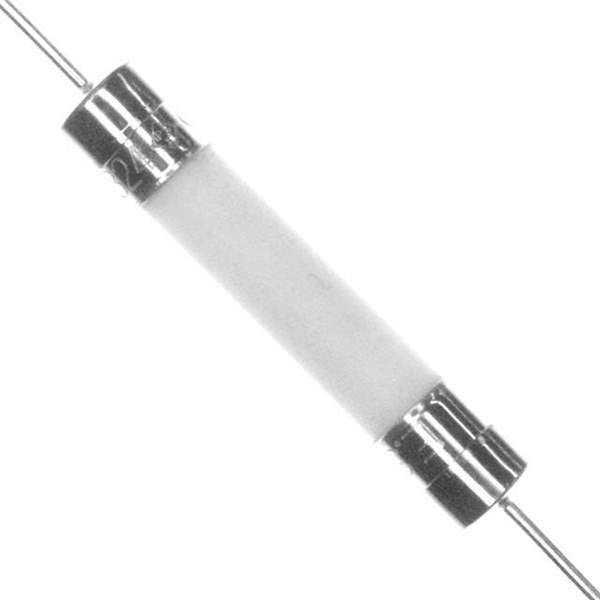

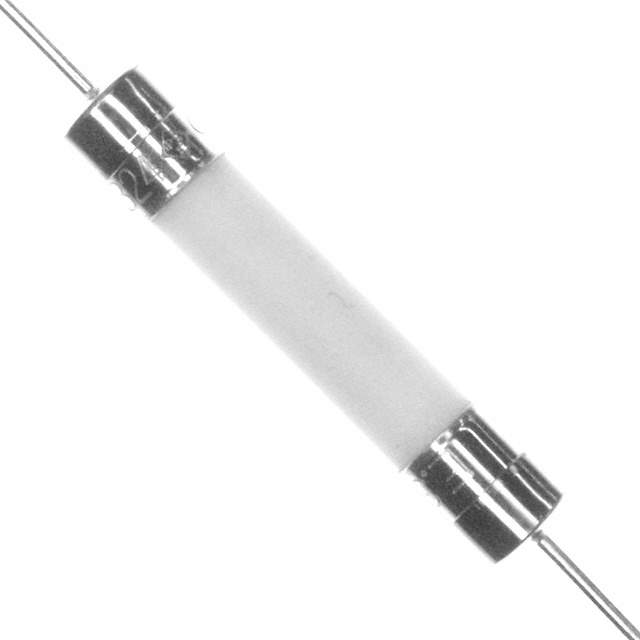

0324020.MXP Real Image
Same model may have multiple batches, images only for reference.

0324020.MXP

Part No 0324020.MXP
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE CERM 20A 250VAC 125VDC 3AB / 314/324 Series Lead-free 3AB, Fast-acting Fuse
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Packaging Bulk
Fuse Type Cartridge, Ceramic
Current Rating (Amps) 20A
Voltage Rating - AC 250V
Voltage Rating - DC 125V
Response Time Fast Blow
Manufacturer Package 3AB, 3AG, 1/4" x 1-1/4" (Axial)
Mounting Style Through Hole
Breaking Capacity at Rated Voltage 200A AC, 10kA DC
Melting I2t 631
Approvals CE, CSA, PSE, UL
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.275" Dia x 1.288" L (6.99mm x 32.72mm)
DC Cold Resistance 0.00355 Ohms
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Balance
Win Source Part Number 801990-0324020.MXP
Ultra Librarian 3D Model Ultra Librarian 0324020.MXP CAD Model

Description

The cartridge ceramic fuse from Littelfuse Inc. is designed for general-purpose circuit protection.

  • Voltage Rating: 250V AC, 125V DC
  • Current Rating: 20A
  • Blow Speed: Fast-Blow
  • DC Cold Resistance: 0.00355 Ohms
  • Package: 3AB, 3AG, 1/4" x 1-1/4" (Axial)
  • Temperature Range: -55°C to 125°C
  • Approvals: CE, CSA, PSE, UL
