Same model may have multiple batches, images only for reference.

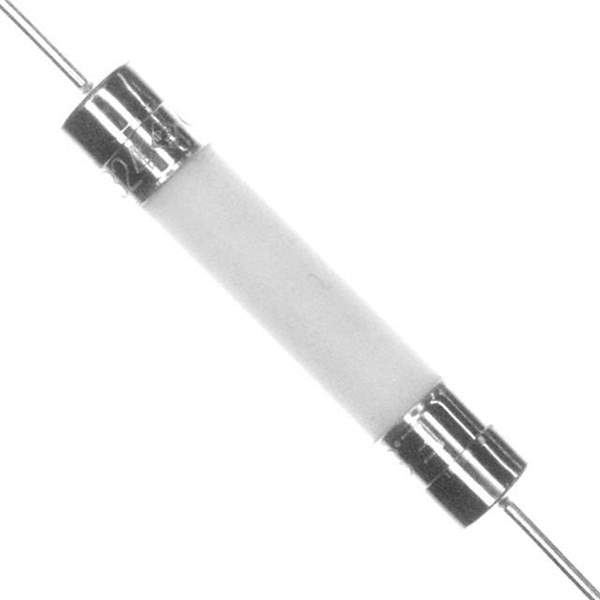

0324025.MXP Real Image
Same model may have multiple batches, images only for reference.

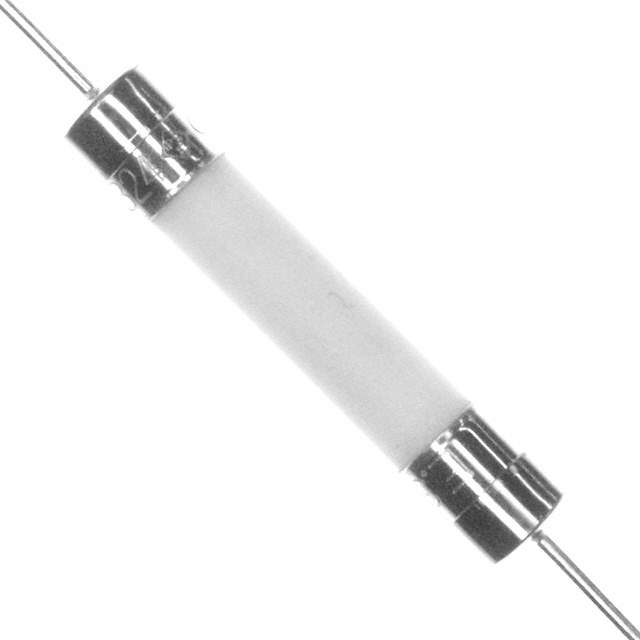

0324025.MXP

Part No 0324025.MXP
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE CERM 25A 250VAC 125VDC 3AB / 314/324 Series Lead-free 3AB, Fast-acting Fuse
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Packaging Bulk
Fuse Type Cartridge, Ceramic
Current Rating (Amps) 25A
Voltage Rating - AC 250V
Voltage Rating - DC 125V
Response Time Fast Blow
Manufacturer Package 3AB, 3AG, 1/4" x 1-1/4" (Axial)
Mounting Style Through Hole
Breaking Capacity at Rated Voltage 100A AC, 400A DC
Melting I2t 1450
Approvals CE, K-MARK, PSE, UL
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.275" Dia x 1.288" L (6.99mm x 32.72mm)
DC Cold Resistance 0.00235 Ohms
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 802978-0324025.MXP
Ultra Librarian 3D Model Ultra Librarian 0324025.MXP CAD Model

Description

The Littelfuse Inc. 802978-0324025.MXP is a ceramic cartridge fuse that is designed for use in various electronic systems.

  • Voltage Rating: 250V AC and 125V DC
  • Response Time: Fast Blow
  • Melting I2t: 1450
  • Approvals: CE, K-MARK, PSE, and UL
  • DC Cold Resistance: 0.00235 Ohms
  • Temperature Range: -55°C to 125°C
  • Category: Integrated Circuits
  • Popularity Rating: Medium
  • Supply and Demand Status: Balanced
  • Manufacturer Pack Quantity: 1,000
  • MSL Level: 1 (Unlimited)
  • Current Rating: 25A
  • Breaking Capacity @ Rated Voltage: 100A AC and 400A DC
