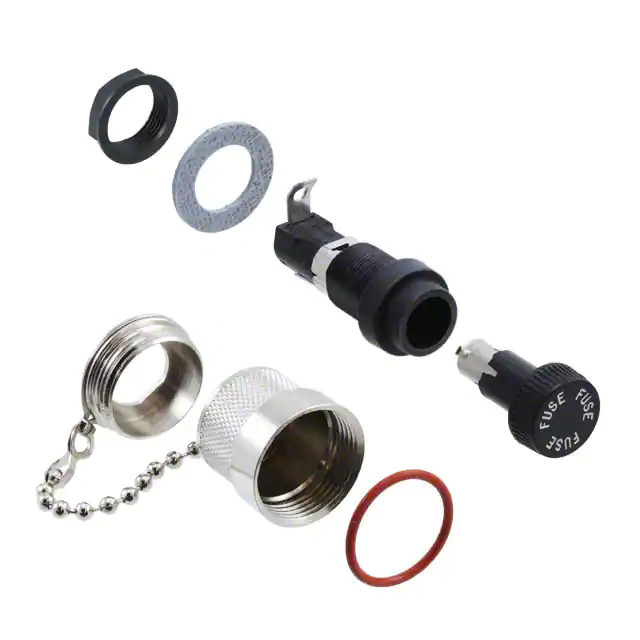

03400312Z

Part No 03400312Z
Manufacturer Littelfuse Inc.
Catalog Fuseholders
Description FUSE HLDR CART 250V 20A PNL MNT / Fuse Holder 20 A 250V 1 Circuit Cartridge Panel Mount
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuseholders
Mfr Littelfuse Inc.
Series 340
Package Bulk
Product Status Active
Mounting Type Panel Mount
Fuse Size 0.25" Dia x 1.26" L (6.35mm x 32mm)
Current Rating (Amps) 20 A
For Use With/Related Products 3AG, 1/4" x 1-1/4" (SFE-20)
Fuse Type Cartridge
Fuseholder Type Holder
Number of Circuits 1
Voltage 250V
Orientation -
Termination Style Solder Lug
Contact Material Copper Alloy
Contact Finish Tin
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.8180
Win Source Part Number 1361503-03400312Z
Ultra Librarian 3D Model Ultra Librarian 03400312Z CAD Model

Description

The 1361503-03400312Z is a fuseholder from Littelfuse Inc.'s 340 series.

  • Mounting Type: Panel Mountable
  • Current Rating: 20A
  • Voltage: 250V
  • Contact Finish: Tin
  • Contact Material: Copper Alloy
  • Termination Style: Solder Lug
  • Fuse Size: 3AG, 1/4" x 1-1/4" (SFE-20)
  • Dimensions: 0.25" Dia x 1.26" L (6.35mm x 32mm)
