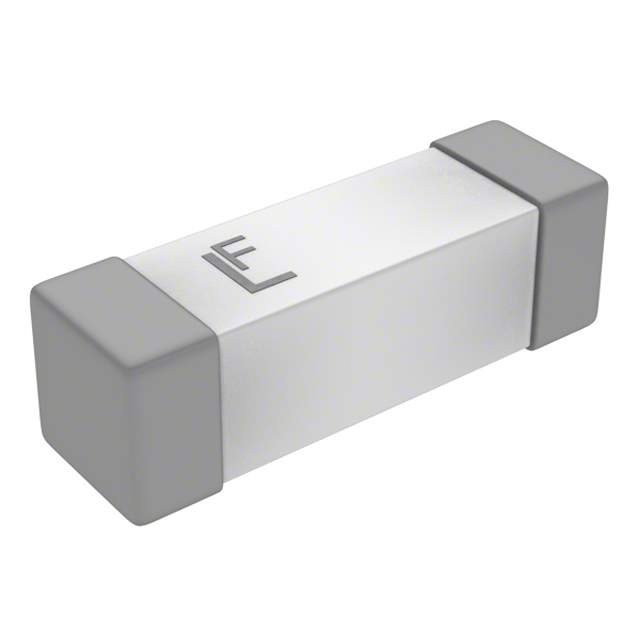

The Littelfuse Inc. NANO2 456 is a board mount (cartridge style excluded) fuse with a current rating of 25A and voltage rating of 125V AC and 72V DC.

• Response Time: It has a fast response time and a breaking capacity of 100A AC and 500A DC @ rated voltage.
• Melting I2t: The device has a melting I2t of 45 and is cULus and PSE approved.
• Resistance: It has a resistance of 0.00192 Ohm and a size of 0.398" L x 0.123" W x 0.123" H (10.10mm x 3.12mm x 3.12mm).
• Temperature Range: The device has a temperature range of -55°C ~ 125°C and is available in a 2-SMD, square end block package.
• Applications: The device is ideal for use in applications such as power supplies, battery chargers, and motor drives.
