Same model may have multiple batches, images only for reference.

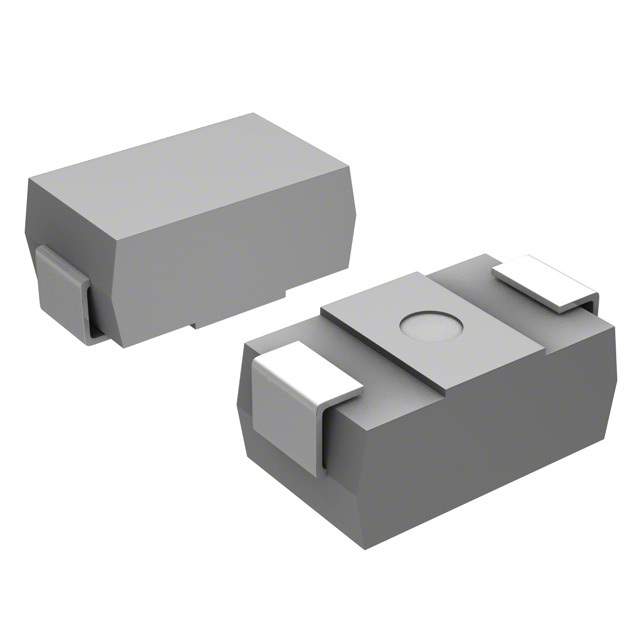

0459003.ER Real Image
Same model may have multiple batches, images only for reference.

0459003.ER

Part No 0459003.ER
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE BRD MNT 3A 125VAC/VDC 2SMD
Datasheet
0459003.ER Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating 3A
Voltage Rating - AC 125V
Voltage Rating - DC 125V
Response Time Fast
Mounting SMD (SMT)
Breaking Capacity @ Rated Voltage 50A AC, 300A DC
Nominal Melting - I2t 1.23
Approvals CSA, UL
Temperature Range - Operating -55°C to 125°C
Nominal Cold Resistance 0.029 Ohm
Win Source Part Number 1000172-0459003.ER
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name 459
Introduction Date January 21, 2009
ECCN EAR99
Country of Origin Philippines
Halogen Free Not Compliant
Estimated EOL Date 2022
Ultra Librarian 3D Model Ultra Librarian 0459003.ER CAD Model

Description

The 0459003.ER is a board mount fuse manufactured by Littelfuse Inc.

  • Mounting Type: SMD (SMT)
  • Operating Temperature Range: -55°C to 125°C
  • Current Rating: 3A
  • Voltage Rating: 125V AC/DC
  • Response Time: Fast
  • Breaking Capacity: 50A AC and 300A DC @ Rated Voltage
  • Approvals: CSA and UL
  • Nominal Melting - I2t: 1.23
  • Nominal Cold Resistance: 0.029 Ohm
  • Alternative Parts (Cross-Reference): 0459003.UR
  • Application: Circuit Protection
  • Popularity: High
