Same model may have multiple batches, images only for reference.

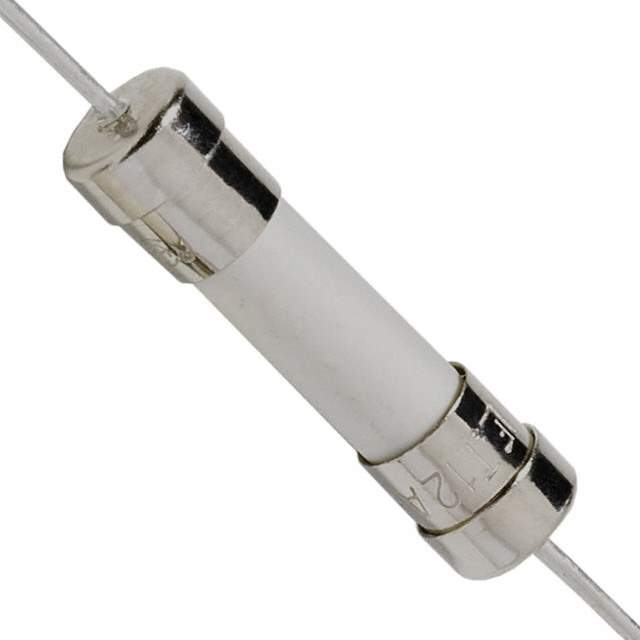

0477002.MXEP Real Image
Same model may have multiple batches, images only for reference.

0477002.MXEP

Part No 0477002.MXEP
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE CERM 2A 500VAC 400VDC 5X20 / Axial Lead & Cartridge Fuses 5×20 mm > Time-Lag > 477 Series
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Packaging Bulk
Fuse Type Cartridge, Ceramic
Current Rating (Amps) 2A
Voltage Rating - AC 500V
Voltage Rating - DC 400V
Response Time Slow Blow
Manufacturer Package 5mm x 20mm (Axial)
Mounting Style Through Hole
Breaking Capacity at Rated Voltage 100A AC, 1.5kA DC
Melting I2t 9.12
Approvals cULus, PSE, SEMKO
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.228" Dia x 0.886" L (5.80mm x 22.50mm)
DC Cold Resistance 0.0552 Ohms
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 809639-0477002.MXEP
Ultra Librarian 3D Model Ultra Librarian 0477002.MXEP CAD Model

Description

The Littelfuse Inc. 748086 is a ceramic cartridge fuse manufactured by Littelfuse Inc.

  • Response Time: Slow Blow
  • Voltage Rating: 500V AC, 400V DC
  • Dimension: 0.228" Dia x 0.886" L (5.80mm x 22.50mm)
