Same model may have multiple batches, images only for reference.

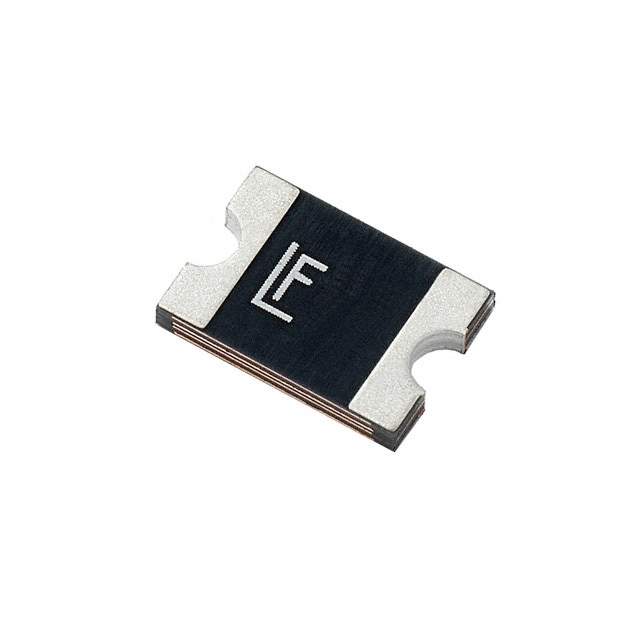

2920L075DR Real Image
Same model may have multiple batches, images only for reference.

2920L075DR

Part No 2920L075DR
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description 2920L Series | PTC RESET FUSE 30V 750MA 2920
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel
Type Polymeric
Voltage - Max 30V
Current - Max 40A
Current - Hold (Ih) (Maximum) 750mA
Current - Trip (It) 1.5A
Time to Trip 300ms
Resistance - Initial (Ri) (Minimum) 350 mOhms
Resistance - Post Trip (R1) (Maximum) 1 Ohms
Temperature Range - Operating -40°C ~ 85°C
Mounting Style SMD
Manufacturer Package 2920 (7351 Metric), Concave
Parts Dimension 0.289" L x 0.202" W (7.35mm x 5.12mm)
Thickness (Maximum) 0.049" (1.25mm)
Approvals cURus, TUV
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1123499-2920L075DR
Manufacturer Homepage www.littelfuse.com
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Automotive, Communications & Networking
Ultra Librarian 3D Model Ultra Librarian 2920L075DR CAD Model

Description

The 2920L075DR is a polymeric positive temperature coefficient (PPTC) device manufactured by Littelfuse Inc.

  • Supply and Demand Status: balanced
  • Can handle: high current up to 40A
  • Trip Current: 1.5A
  • Hold Current: 750mA
