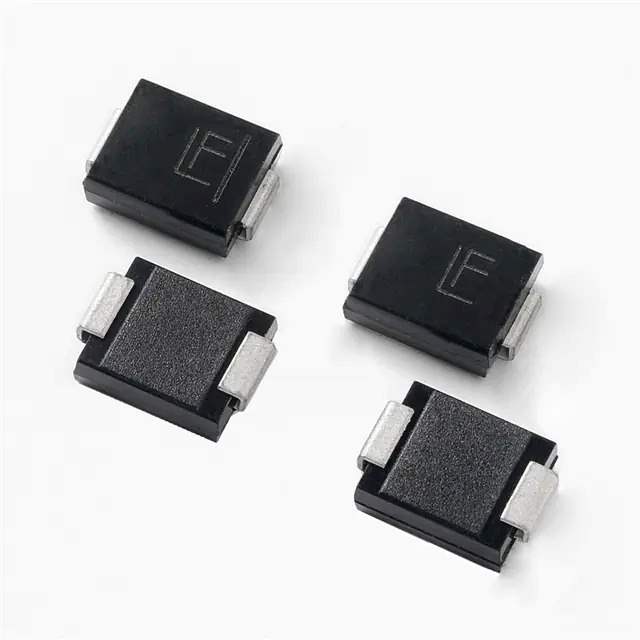

3.0SMCJ28A Real Image
Same model may have multiple batches, images only for reference.

3.0SMCJ28A

Part No 3.0SMCJ28A
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 3000W UNI DO-214AB 28V
Datasheet
3.0SMCJ28A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr Littelfuse Inc.
Series 3.0SMCJ
Package Tape & Reel
Product Status Active
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 28V
Voltage - Breakdown (Min) 31.1V
Voltage - Clamping (Max) @ Ipp 45.4V
Current - Peak Pulse (10/1000µs) 66.1A
Power - Peak Pulse 3000W (3kW)
Power Line Protection No
Applications Telecom
Temperature Range - Operating -65°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case DO-214AB, SMC
Supplier Device Package DO-214AB (SMCJ)
Base Product Number 3.0SMCJ
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
California Prop 65 Warning Information
Win Source Part Number 855468-3.0SMCJ28A
Ultra Librarian 3D Model Ultra Librarian 3.0SMCJ28A CAD Model

Description

The 855468-3.0SMCJ28A is a Zener-type transient voltage suppressor (TVS) diode from the 3.0SMCJ series and is manufactured by Littelfuse Inc..

  • Application: Telecom
  • Reverse Standoff Voltage: 28V
  • Breakdown Voltage: 31.1V
  • Clamping Voltage @ Ipp: 45.4V
  • Peak Pulse Power: 3000W (3kW)
  • Direction: Unidirectional
  • Package: Surface Mount (DO-214AB, SMC)
  • Temperature Range: -65°C to 150°C (TJ)
  • Product Status: Active
  • Series: 3.0SMCJ
