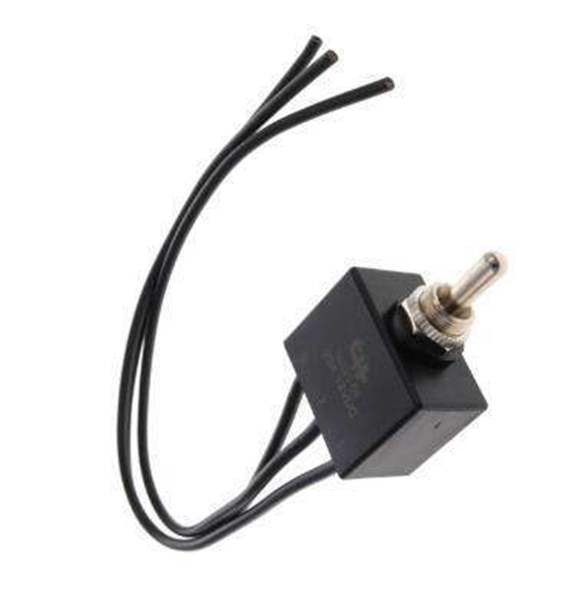

55025-04 Littelfuse/Commercial Vehicle Products
Same model may have multiple batches, images only for reference.

55025-04

Part No 55025-04
Manufacturer Littelfuse Inc.
Catalog Toggle Switches
Description SWITCH TOGGLE SPDT M.ON-OFF-M.ON
Datasheet
55025-04 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Littelfuse/Commercial Vehicle Products
Category Switches Toggle Switches
Package Bulk
Product Status Active
Mounting Type Panel Mount
Current Rating (Amps) 15A (DC)
Actuator Type Standard Round
Actuator Length 15.30mm
Illumination Non-Illuminated
Termination Style Wire Leads
Win Source Part Number WS1209327-55025-04
Ultra Librarian 3D Model Ultra Librarian 55025-04 CAD Model

Description

Littelfuse Toggle Switches are designed for universal applications within harsh environments. Their mounting, body, and actuator features are designed for ease-of-use and extended product lifecycle. The 55025 series is our most popular sealed toggle switch product, meant to be mounted in virtually any environment and for any application.
