Same model may have multiple batches, images only for reference.

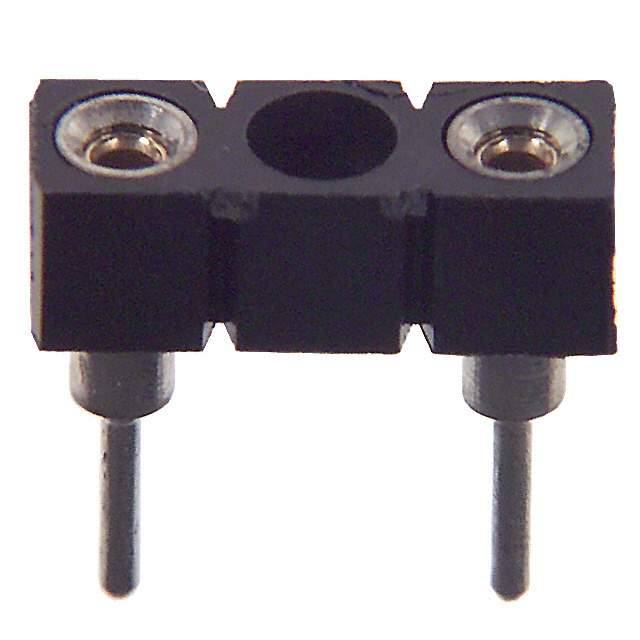

56200001009 Real Image
Same model may have multiple batches, images only for reference.

56200001009

Part No 56200001009
Manufacturer Littelfuse Inc.
Catalog Fuseholders
Description FUSE HOLDER RADIAL 250V 6.3A PCB / Fuse Holder 6.3A 250V Through Hole Pin Bulk
Datasheet
56200001009 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Series 562
Fuseholder Type Holder
Fuse Type Radial
For Use With/Related Products TE5, TR5
Fuse Size Radial 0.2" (5.08mm) pitch
Number of Circuits 1
Voltage 250V
Current Rating 6.3A
Mounting PCB
Orientation Vertical
Termination Style PC Pin
Contact Material Copper Alloy
Contact Finish Tin
Win Source Part Number 799311-56200001009
Popularity Medium
Supply and Demand Status Limited
Family Name 562
Introduction Date September 02, 2005
ECCN EAR99
Country of Origin China
Halogen Free Not Compliant
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian 56200001009 CAD Model

Description

The 799311-56200001009 is a radial fuse manufactured by Littelfuse Inc.. Littelfuse Inc.

  • Series: 562
  • Termination Style: PC pin
  • Contact Material: Copper Alloy
  • Contact Finish: Tin
  • Current Rating: 6.3A
  • Voltage: 250V
  • Compatibility: TE5 and TR5 products
  • Mounting: PCB
  • Circuits: 1
  • Orientation: Vertical
  • Fuse Size: radial 0.2" (5.08mm) pitch
