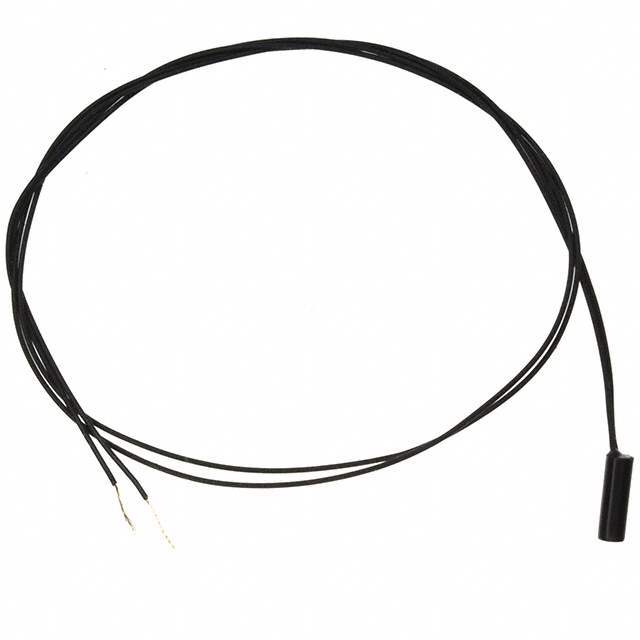

59010-1-S-02-F Littelfuse Inc.
Same model may have multiple batches, images only for reference.

59010-1-S-02-F

Part No 59010-1-S-02-F
Manufacturer Littelfuse Inc.
Catalog Magnetic Sensors - Position, Proximity, Speed (Modules)
Description SENSOR REED SW SPST-NO W LEADS
Datasheet
59010-1-S-02-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Packaging Bulk
Part Status Active
Type Reed Switch
Output Type SPST-NO
Actuator Material Magnet
Termination Style Wire Leads with Connector
Must Operate 6.00mm
Operating Temperature -40°C ~ 85°C
Package / Case Probe
Ultra Librarian 3D Model Ultra Librarian 59010-1-S-02-F CAD Model

Description

The 59010 Firecracker Reed Sensor is a sub-miniature cylindrical reed sensor 9.0mm L x 3.0mm Dia. (0.354” x 0.118”) with a normally open contact. It is capable of switching up to 170Vdc at 10W and has cable length and connector options. It functions best with the 57020-000 actuator.
