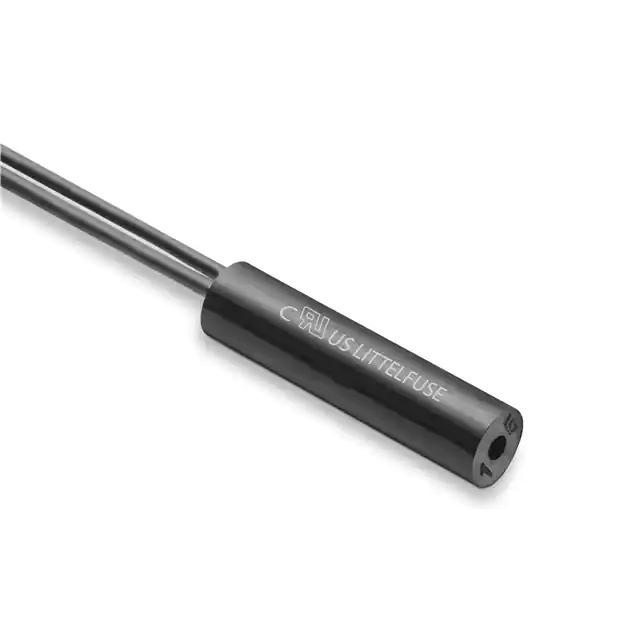

59025-2-U-02-A Littelfuse Inc.
Same model may have multiple batches, images only for reference.

59025-2-U-02-A

Part No 59025-2-U-02-A
Manufacturer Littelfuse Inc.
Catalog Magnetic Sensors - Position, Proximity, Speed (Modules)
Description SENSOR REED SW SPST-NO W LEADS
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Magnetic Sensors - Position, Proximity, Speed (Modules)
Mfr Littelfuse Inc.
Series 59025
Package Box
Product Status Active
Type Reed Switch
Output Type SPST-NO
Actuator Material Magnet
Termination Style Wire Leads
Voltage - Supply -
Must Operate 5.00mm
Must Release -
Temperature Range - Operating -20°C ~ 105°C (TA)
Package / Case Probe
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1375845-59025-2-U-02-A
Ultra Librarian 3D Model Ultra Librarian 59025-2-U-02-A CAD Model

Description

The 1375845-59025-2-U-02-A is a reed switch magnetic sensor module manufactured by Littelfuse Inc.

  • Series: 59025
  • Package: Box
  • Applications: Position, Proximity, Speed Sensing
  • Temperature Range: -20°C to 105°C
  • Must Operate Distance: 5.00mm
  • Output Type: SPST-NO
  • Termination: Wire Leads
  • Actuator Material: Magnet
  • Product Status: Active
  • REACH: Compliant
  • ECCN: EAR99
