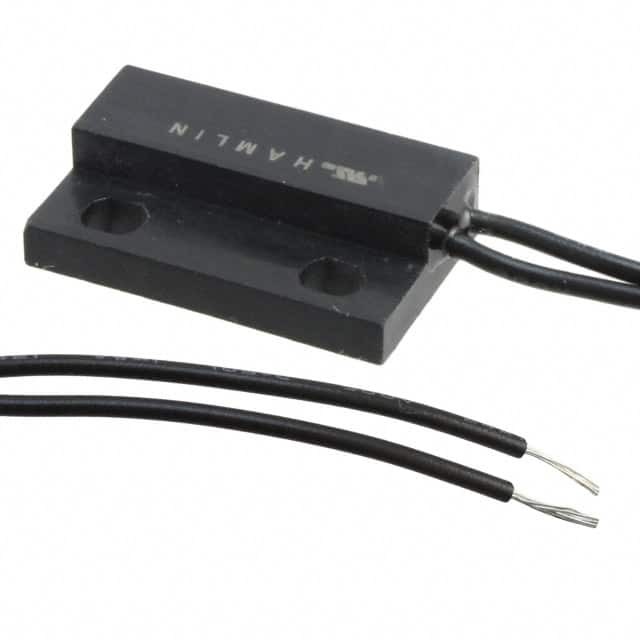

Same model may have multiple batches, images only for reference.
59140-1-S-02-A
Same model may have multiple batches, images only for reference.

59140-1-S-02-A

Part No 59140-1-S-02-A
Manufacturer Littelfuse Inc.
Catalog Magnetic Sensors - Position, Proximity, Speed (Modules)
Description SENSOR REED SW SPST-NO W LEADS
Datasheet
59140-1-S-02-A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Magnetic Sensors - Position, Proximity, Speed (Modules)
Mfr Littelfuse Inc.
Series 59140
Package Bulk
Product Status Active
Type Reed Switch
Output Type SPST-NO
Actuator Material Magnet
Termination Style Wire Leads
Must Operate 10.40mm
Temperature Range - Operating -40°C ~ 105°C (TA)
Package / Case Flange Mount
Standard Package 100 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8543.70.9860
California Prop 65 Warning Information
Win Source Part Number 848104-59140-1-S-02-A
Ultra Librarian 3D Model Ultra Librarian 59140-1-S-02-A CAD Model

Description

The 848104-59140-1-S-02-A is a reed switch from Littelfuse Inc., designed for use in magnetic sensors for position, proximity, and speed detection.

  • Termination Style: Wire Leads
  • Package: Bulk
  • Actuator Material: Magnet
  • Output Type: SPST-NO
  • Must Operate Distance: 10.40mm
  • Release Distance: Not Specified
  • Voltage Supply: Not Specified
  • Package/Case: Flange Mount
  • Operating Temperature: -40°C to 105°C
  • Product Status: Active
  • REACH: Compliant
