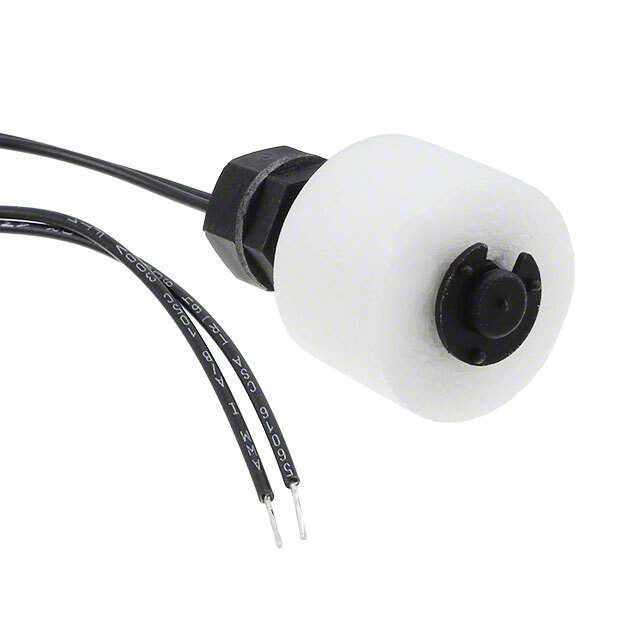

59630-4-T-02-F Littelfuse Inc.
Same model may have multiple batches, images only for reference.

59630-4-T-02-F

Part No 59630-4-T-02-F
Manufacturer Littelfuse Inc.
Catalog Float, Level Sensors
Description SENSOR LEVEL SWITCH SINGLE FLOAT
Datasheet
59630-4-T-02-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Packaging Box
Part Status Part Status
Type Liquid
Output Type Switch (Single Float)
Output Configuration SPST-NC
Current 500 mA
Mounting Type Panel Mount, M8 Thread
Operating Temperature -40°C ~ 105°C
Voltage Rating 200VDC
Ultra Librarian 3D Model Ultra Librarian 59630-4-T-02-F CAD Model

Description

The 59630 is a reed level sensor with integral float actuator and an M8 x 1.25mm pitch thread with a choice of normally open, normally open high voltage, normally closed or change over contacts. It is capable of switching up to 265Vac/300Vdc at 10VA. It is ideally suited to liquid and air conditioning condensate and industrial process control applications.
