Same model may have multiple batches, images only for reference.

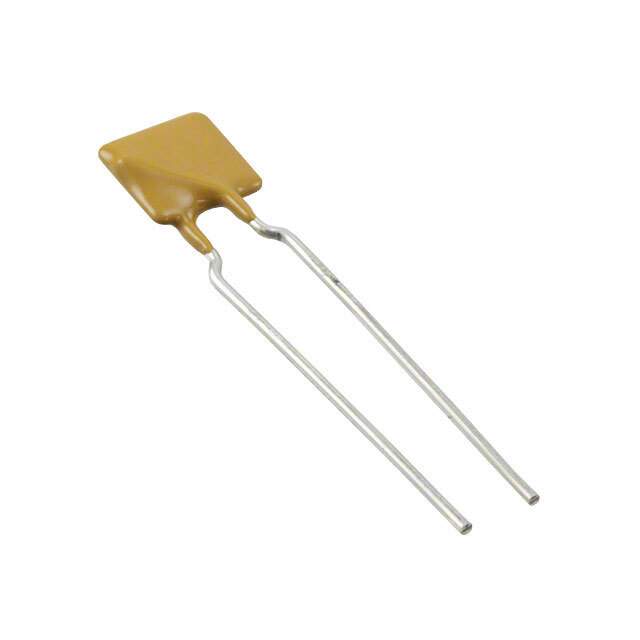

AGRF1200-2 Real Image
Same model may have multiple batches, images only for reference.

AGRF1200-2

Part No AGRF1200-2
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description POLYSWITCH PTC RESET 12A HLD / PTC Resettable Fuse 12A(hold) 22.1A(trip) 16VDC 100A 4.2W 8s 0.07Ohm Radial 17.5 X 3.5 X 28.8mm T/R Automotive
Datasheet
AGRF1200-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Series PolySwitch, AGRF
Packaging Reel package
Type Polymeric
Voltage - Max 16V
Current - Max 100A
Current - Hold (Ih) (Maximum) 12A
Current - Trip (It) 22.1A
Time to Trip 8s
Resistance - Initial (Ri) (Minimum) 3 mOhm
Resistance - Post Trip (R1) (Maximum) 8.6 mOhm
Operating Temperature Range -40°C ~ 85°C
Ratings AEC-Q200
Mounting Style Through Hole
Package Radial, Disc
Dimension 0.689" L x 0.138" W (17.50mm x 3.50mm)
Height - Seated (Maximum) 1.140" (28.80mm)
Lead Spacing 0.400" (10.15mm)
Win Source Part Number 793121-AGRF1200-2
Popularity Medium
Supply and Demand Status Limited
Introduction Date November 09, 2015
ECCN EAR99
Country of Origin China
Ultra Librarian 3D Model Ultra Librarian AGRF1200-2 CAD Model

Description

The Littelfuse PolySwitch AGRF series is a polymeric circuit protection device from Littelfuse.

  • Maximum Voltage: 16V
  • Maximum Current: 100A
  • Trip Current: 22.1A
  • Hold Current: 12A
  • AEC-Q200 Approval: Yes
  • Package: Radial, Disc
  • Lead Spacing: 0.400" (10.15mm)
  • Operating Temperature: -40°C to 85°C
  • Package Type: Reel
  • Threat of Fake Products: 39%
  • Supply and Demand Status: Limited
