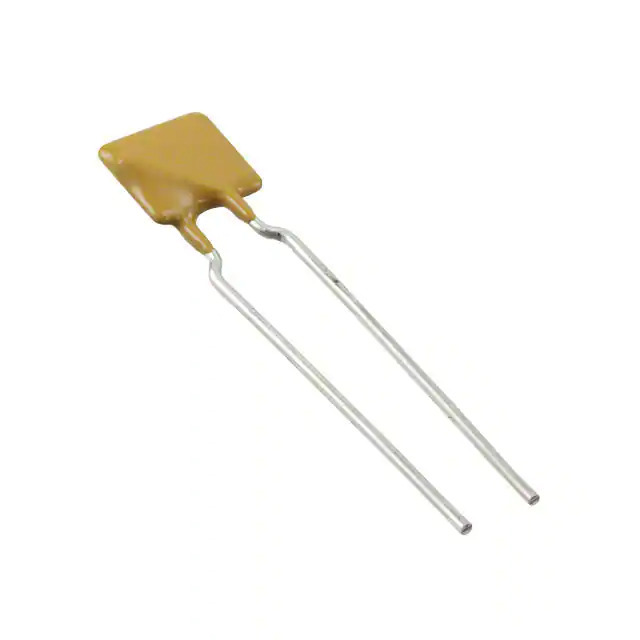

Same model may have multiple batches, images only for reference.
AGRF400 Littelfuse Inc.
Same model may have multiple batches, images only for reference.

AGRF400

Part No AGRF400
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 16V 4A RADIAL / Polymeric PTC Resettable Fuse 16V 4 A Ih Through Hole Radial, Disc
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - PTC Resettable Fuses
Mfr Littelfuse Inc.
Series PolySwitch®, AGRF
Package Bag
Product Status Active
Type Polymeric
Voltage - Max 16V
Current - Hold (Ih) (Max) 4 A
Current - Trip (It) 7.6 A
Current - Max 100 A
Time to Trip 2 s
Resistance - Initial (Ri) (Min) 18.6 mOhms
Resistance - Post Trip (R1) (Max) 61 mOhms
Temperature Range - Operating -40°C ~ 85°C
Ratings AEC-Q200
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.350" L x 0.118" W (8.90mm x 3.00mm)
Height - Seated (Max) 0.555" (14.10mm)
Thickness (Max) -
Lead Spacing 0.199" (5.05mm)
Approval Agency -
MSL Level Not Applicable
ECCN EAR99
HTSUS 8533.40.8070
California Prop 65 Warning Information
Win Source Part Number 1361742-AGRF400
Ultra Librarian 3D Model Ultra Librarian AGRF400 CAD Model

Description

The Littelfuse Inc. PolySwitch® AGRF series is a reliable and efficient PTC resettable fuse from Littelfuse Inc.

  • Current Rating: 100 Amps
  • Voltage Rating: 16V
  • Temperature Range: -40°C to 85°C
  • Material: Polymeric
  • Package: Radial, Disc
  • Mounting Type: Through Hole
  • Lead Spacing: 0.199" (5.05mm)
  • Size: 0.350" L x 0.118" W (8.90mm x 3.00mm)
  • Height: 0.555" (14.10mm)
  • REACH: Not affected by REACH regulations
  • Resistance (Initial): 18.6 mOhms
  • Resistance (Post Trip): 61 mOhms
