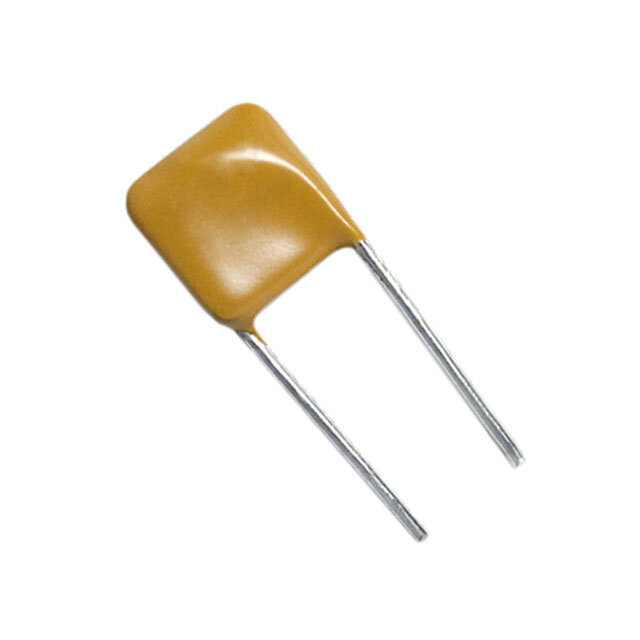

AHEF1000

Part No AHEF1000
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 32V 10A RADIAL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Type Polymeric
Voltage - Max 32V
Current - Hold (Ih) (Max) 10 A
Current - Trip (It) 20 A
Current - Max 100 A
Time to Trip 15 s
Resistance - Initial (Ri) (Min) 6 mOhms
Resistance - Post Trip (R1) (Max) 16 mOhms
Temperature Range - Operating -40°C ~ 125°C
Grade Automotive
Qualification AEC-Q200
Mounting Type Through Hole
Case / Package Radial, Disc
Size / Dimension 0.925" L x 0.157" W (23.50mm x 4.00mm)
Height - Seated (Max) 1.098" (27.90mm)
Lead Spacing 0.400\
Package Bag
Supply and Demand Status Shortage
Win Source Part Number 1607306-AHEF1000
Ultra Librarian 3D Model Ultra Librarian AHEF1000 CAD Model

Description

N
