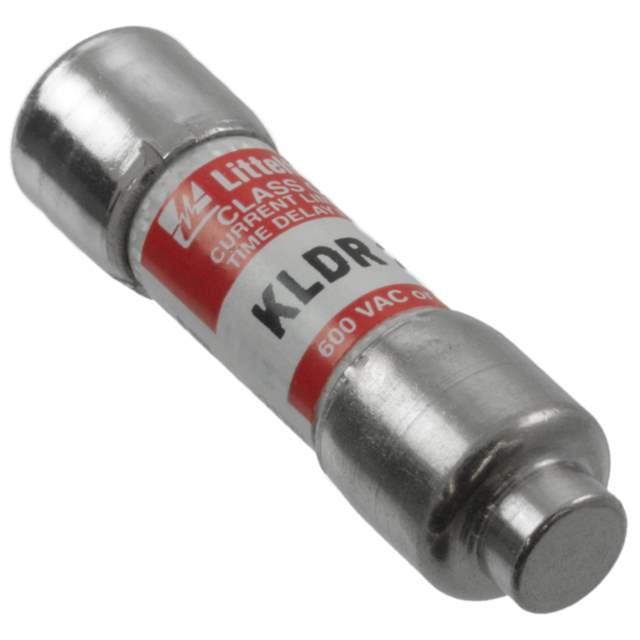

KLDR025.T Real Image1 KLDR025.T Real Image2
Same model may have multiple batches, images only for reference.
KLDR025.T Real Image1 KLDR025.T Real Image2
KLDR025.T Real Image1 KLDR025.T Real Image2
Same model may have multiple batches, images only for reference.

KLDR025.T

Part No KLDR025.T
Manufacturer Littelfuse Inc.
Catalog Electrical, Specialty Fuses
Description FUSE CARTRIDGE 25A 600VAC/300VDC / 25A 600 V AC 300 V DC Fuse Cartridge Requires Holder
Datasheet
KLDR025.T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Electrical, Specialty Fuses
Mfr Littelfuse Inc.
Series POWR-GARD® KLDR
Package Bulk
Product Status Obsolete
Mounting Type Requires Holder
Fuse Type Cartridge
Current Rating (Amps) 25A
Voltage Rating - AC 600 V
Voltage Rating - DC 300 V
Response Time Slow Blow
Applications Transformer Protection
Features -
Class CC
Approval Agency CE, CSA, UL
Temperature Range - Operating -
Breaking Capacity @ Rated Voltage 200kA AC, 20kA DC
Package / Case 5AG, 10mm x 38mm (Midget)
Size / Dimension 0.406" Dia x 1.500" L (10.30mm x 38.10mm)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8536.10.0040
Standard Package 10 pcs
Win Source Part Number 1382423-KLDR025.T
Ultra Librarian 3D Model Ultra Librarian KLDR025.T CAD Model

Description

The KLDR025.T is a cartridge fuse from Littelfuse Inc. It is part of the POWR-GARD KLDR series and is designed for circuit protection applications, particularly for transformer protection. This fuse has a voltage rating of 600V AC and 300V DC, with a slow blow response time.

  • Voltage Rating: 600V AC, 300V DC
  • Response Time: Slow Blow
  • Breaking Capacity: 200kA AC, 20kA DC @ rated voltage
  • Package: Bulk
  • Package Size: 10 pieces
  • Mounting: Requires a holder
  • Class: Class CC
  • Status: Obsolete
