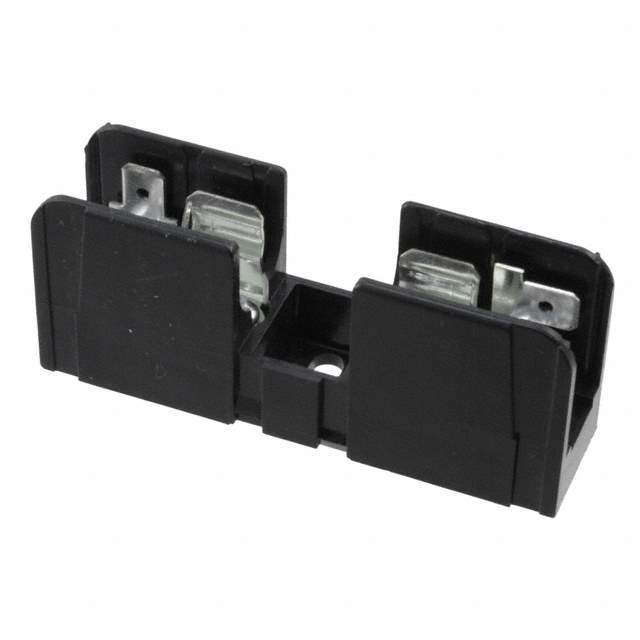

L60030M1PQ Real Image
Same model may have multiple batches, images only for reference.

L60030M1PQ

Part No L60030M1PQ
Manufacturer Littelfuse Inc.
Catalog Fuseholders
Description FUSE BLOCK CART 600V 30A CHASSIS / Fuse Block 30 A 600V 1 Circuit Cartridge Chassis Mount
Datasheet
L60030M1PQ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuseholders
Mfr Littelfuse Inc.
Series L600
Package Box
Mounting Type Chassis Mount
Fuse Size 0.394" Dia x 1.496" L (10mm x 38mm)
Current Rating (Amps) 30 A
For Use With/Related Products 5AG, 13/32" x 1-1/2" (Midget)
Fuse Type Cartridge
Fuseholder Type Block
Number of Circuits 1
Voltage 600V
Termination Style Screw Terminal, Pressure Plate, Quick Connect
Contact Material Copper Alloy
Contact Finish Tin
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8538.90.8180
Other Names L60030M-1PQ,F5258,-L60030M1PQ,L60030M1PQ-ND
Standard Package 1
Win Source Part Number 1068446-L60030M1PQ
Ultra Librarian 3D Model Ultra Librarian L60030M1PQ CAD Model

Description

The Littelfuse Inc. L60030M1PQ is a fuse holder that falls under the category of Circuit Protection.

  • Category: Circuit Protection
  • Series: L600
  • Termination Style: Screw Terminal, Pressure Plate, Quick Connect
  • Contact Finish: Tin
  • Contact Material: Copper Alloy
  • Fuse Size: 5AG, 13/32" x 1-1/2" (Midget), 0.394" Dia x 1.496" L (10mm x 38mm)
  • Voltage Rating: 600V
  • Circuits: 1
  • Current Rating: 30A
  • Mounting: Chassis Mount
  • Package: Box
