T4112002051-000 Real Image
Same model may have multiple batches, images only for reference.

T4112002051-000

Part No T4112002051-000
Manufacturer TE Connectivity
Catalog Circular Connectors
Description CONN PLUG FMALE 5POS GOLD SCREW / 5 Position Circular Connector Plug, Female Sockets Screw
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors
Mfr TE Connectivity AMP Connectors
Series M12
Package Bulk
Connector Type Plug, Female Sockets
Number of Positions 5
Shell Size - Insert M12-5
Mounting Type Free Hanging (In-Line), Right Angle
Termination Screw
Fastening Type Threaded
Orientation A
Primary Material Metal
Shell Material Brass
Shell Finish Nickel
Contact Finish - Mating Gold
Color Black, Silver
Ingress Protection IP67 - Dust Tight, Waterproof
Features Backshell, Coupling Nut
Shielding Unshielded
Current Rating (Amps) 4A
Voltage Rating 60V
Cable Opening 0.236" ~ 0.315" (6.00mm ~ 8.00mm)
Temperature Range - Operating -40°C ~ 85°C
Backshell Material, Plating Polybutylene Terephthalate (PBT), Glass Filled
Contact Material Zinc Alloy
Contact Finish Thickness - Mating 3.00µin (0.076µm)
Insert Material Polyamide (PA), Nylon
Applications Industrial
Base Product Number T41120
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4020
Other Names A129285,T4112002051-000-ND,-T4112002051-000-SI
Standard Package 1
Win Source Part Number 1031950-T4112002051-000
Ultra Librarian 3D Model Ultra Librarian T4112002051-000 CAD Model

Description

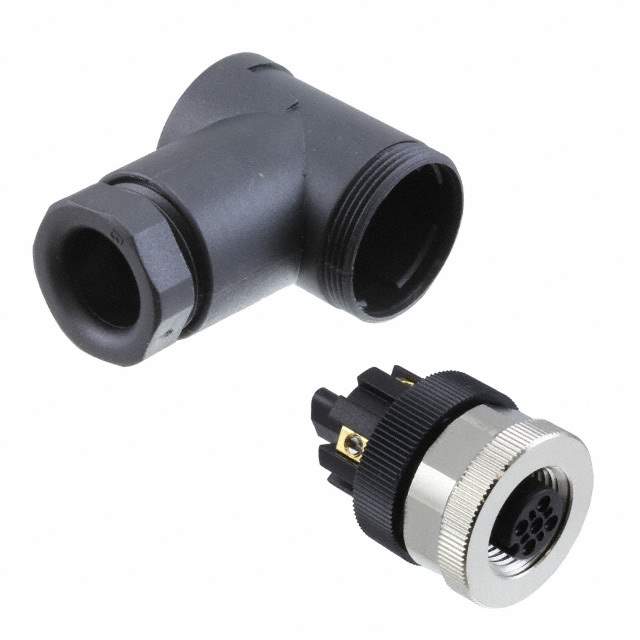

The TE Connectivity AMP Connectors T4112002051-000 is a circular connector that comes with a backshell and coupling nut.

  • Package: Bulk
  • Standard Package: 1
  • Shell Size: M12-5
  • Operating Temperature: -40°C to 85°C
  • Voltage Rating: 60V
  • Ingress Protection: IP67 - dust tight, waterproof
  • Shell Material: Brass with nickel finish
  • Insert Material: Polyamide (PA), nylon
  • Current Rating: 4A
  • Mounting: Free hanging (in-line) or right-angle
  • HTSUS Code: 8536.69.4020
  • ECCN: EAR99
