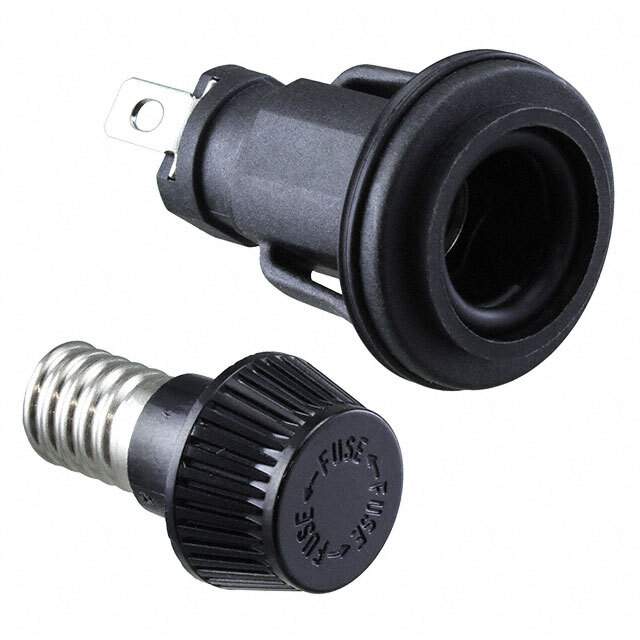

057200CCL Real Image
Same model may have multiple batches, images only for reference.

057200CCL

Part No 057200CCL
Manufacturer Littelfuse Inc.
Catalog Fuseholders
Description FUSE HLDR CART 600V 30A PNL MNT / Fuse Holder 30 A 600V 1 Circuit Cartridge Panel Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuseholders
Mfr Littelfuse Inc.
Series 572
Package Bulk
Mounting Type Panel Mount
Fuse Size 0.394" Dia x 1.496" L (10mm x 38mm)
Current Rating (Amps) 30 A
For Use With/Related Products 5AG, 13/32" x 1-1/2" (Midget)
Fuse Type Cartridge
Fuseholder Type Holder
Number of Circuits 1
Voltage 600V
Termination Style Quick Connect - 0.250" (6.3mm)
Contact Material Brass
Contact Finish Tin
Standard Package 1
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.8180
California Prop 65 Warning Information
Win Source Part Number 1340453-057200CCL
Ultra Librarian 3D Model Ultra Librarian 057200CCL CAD Model

Description

The 1340453-057200CCL is a fuseholder for cartridge fuses. 1340453-057200CCL is manufactured by Littelfuse Inc.

  • Series: 572
  • Termination Style: Quick Connect, 0.250 inches (6.3mm)
  • Contact Finish: Tin
  • Contact Material: Brass
  • Compatible Fuse Types: 5AG, 13/32 inches x 1-1/2 inches (Midget)
  • Package: Bulk
  • Standard Package: 1
  • Voltage Rating: 600V
  • Current Rating: 30 A
  • Fuse Size: 0.394 inches in diameter and 1.496 inches in length (10mm x 38mm)
  • Mounting Type: Panel Mount
  • ECCN: EAR99
  • California Prop 65 Warning: Yes
