Same model may have multiple batches, images only for reference.

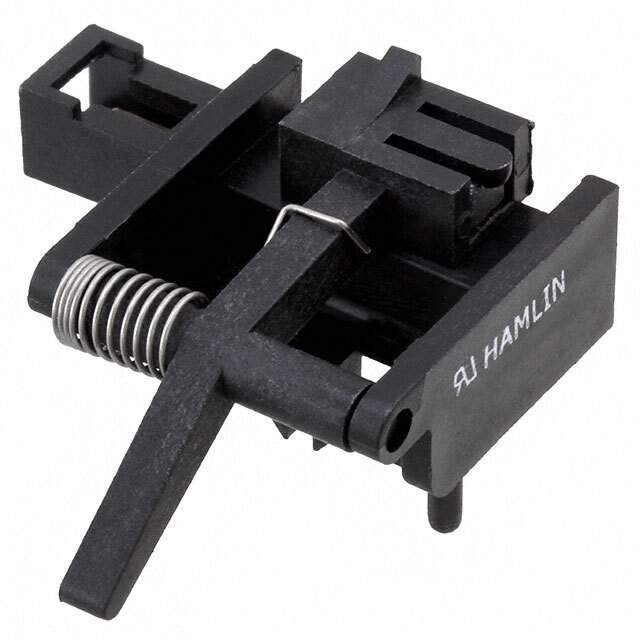

59210-020 Real Image
Same model may have multiple batches, images only for reference.

59210-020

Part No 59210-020
Manufacturer Littelfuse Inc.
Catalog Magnetic Sensors - Position, Proximity, Speed (Modules)
Description SENSOR REED SW SPST-NO CONNECTOR / Magnetic Reed Switch Magnet SPST-NO Connector Module
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Magnetic Sensors - Position, Proximity, Speed (Modules)
Manufacturer Littelfuse Inc.
Packaging Box
Type Reed Switch
Output Type SPST-NO
Actuator Material Magnet
Termination Style Connector
Case / Package Module
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8543.70.9860
Other Part Number HE636,-1024-59210-020,1294-59210-020
Standard Package 300
Win Source Part Number 1336498-59210-020
Ultra Librarian 3D Model Ultra Librarian 59210-020 CAD Model

Description

The 59210-020 is a reed switch module designed for magnetic sensors in position, proximity, and speed applications.

  • Output Type: SPST-NO
  • Must Release and Must Operate: Yes
  • Package: standard package of 300
  • Termination: connector
  • Supplier: Littelfuse Inc.
  • ECCN: EAR99
  • RoHS3 Compliant: Yes
