Same model may have multiple batches, images only for reference.

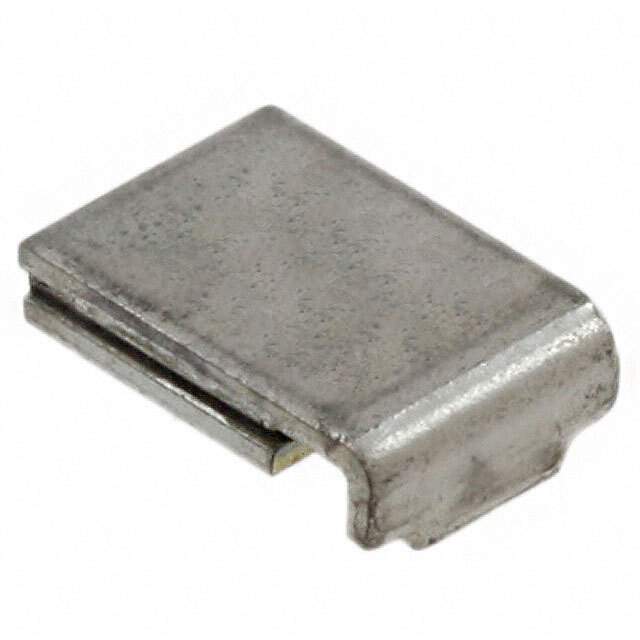

AHS120-2 Real Image
Same model may have multiple batches, images only for reference.

AHS120-2

Part No AHS120-2
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Datasheet
AHS120-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>PTC Resettable Fuses
Mfr Littelfuse Inc.
Series PolySwitch®, AHS
Package Tape & Reel
Type Polymeric
Voltage - Max 16V
Current - Max 50 A
Current - Hold (Ih) (Max) 1.2 A
Current - Trip (It) 2.3 A
Time to Trip 2 s
Resistance - Initial (Ri) (Min) 150 mOhms
Resistance - Post Trip (R1) (Max) 340 mOhms
Temperature Range - Operating -40°C ~ 125°C
Ratings AEC-Q200
Mounting SMD (SMT)
Package / Case 2-SMD
Dimension 0.290" L x 0.202" W (7.36mm x 5.12mm)
Thickness (Max) 0.118" (3.00mm)
MSL Level 2A (4 Weeks)
ECCN EAR99
HTSUS 8533.40.8070
Win Source Part Number 1314608-AHS120-2
Ultra Librarian 3D Model Ultra Librarian AHS120-2 CAD Model

Description

The Littelfuse Inc. circuit protection component is a PolySwitch® AHS series polymeric type PTC resettable fuse.

  • Manufacturer: Littelfuse Inc.
  • Component Type: PTC Resettable Fuse
  • Series: PolySwitch® AHS
  • Type: Polymeric
  • Voltage - Max: 16V
  • Current - Max: 50A
  • Current - Hold (Ih) (Max): 1.2A
  • Current - Trip (It): 2.3A
  • Time to Trip: 2s
  • Thickness (Max): 0.118" (3.00mm)
  • Dimension: 0.290" L x 0.202" W (7.36mm x 5.12mm)
  • Mounting: SMD (SMT)
  • Package: Tape & Reel
  • Category: Circuit Protection > PTC Resettable Fuses
  • Popularity: Medium
  • MSL Level: 2A (4 Weeks)
  • HTSUS: 8533.40.8070
  • Approval Agency: Not provided
