Same model may have multiple batches, images only for reference.

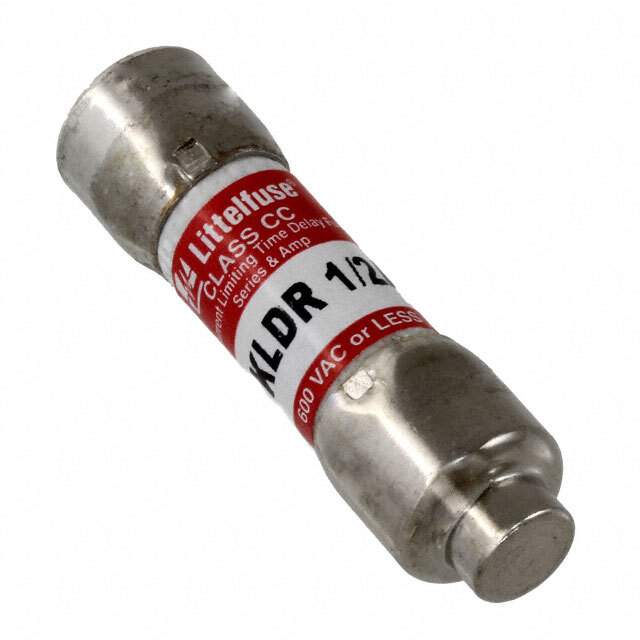

KLDR.500TXP Real Image
Same model may have multiple batches, images only for reference.

KLDR.500TXP

Part No KLDR.500TXP
Manufacturer Littelfuse Inc.
Catalog Electrical, Specialty Fuses
Description FUSE CRTRDGE 500MA 600VAC/300VDC / 500mA 600 V AC 300 V DC Fuse Cartridge Requires Holder
Datasheet
KLDR.500TXP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Electrical, Specialty Fuses
Mfr Littelfuse Inc.
Series POWR-GARD® KLDR
Package Bulk
Mounting Type Requires Holder
Fuse Type Cartridge
Current Rating (Amps) 500mA
Voltage Rating - AC 600 V
Voltage Rating - DC 300 V
Response Time Slow Blow
Applications Transformer Protection
Class CC
Approval Agency CE, CSA, UL
Breaking Capacity @ Rated Voltage 200kA AC, 20kA DC
Package / Case 5AG, 10mm x 38mm (Midget)
Size / Dimension 0.406" Dia x 1.500" L (10.30mm x 38.10mm)
Standard Package 10
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
California Prop 65 Warning Information
Win Source Part Number 1339747-KLDR.500TXP
Ultra Librarian 3D Model Ultra Librarian KLDR.500TXP CAD Model

Description

The KLDR.500TXP is an electrical specialty fuse from Littelfuse Inc.

  • Series: POWR-GARD® KLDR
  • Manufacturer: Littelfuse Inc.
  • Type: Cartridge Fuse
  • Response Time: Slow Blow
  • Breaking Capacity: 200kA AC and 20kA DC @ Rated Voltage
  • Voltage Rating: 600V AC and 300V DC
  • Mounting: Bulk Package
  • Current Rating: 500mA
  • Application: Transformer Protection
  • Operating Temperature: -
