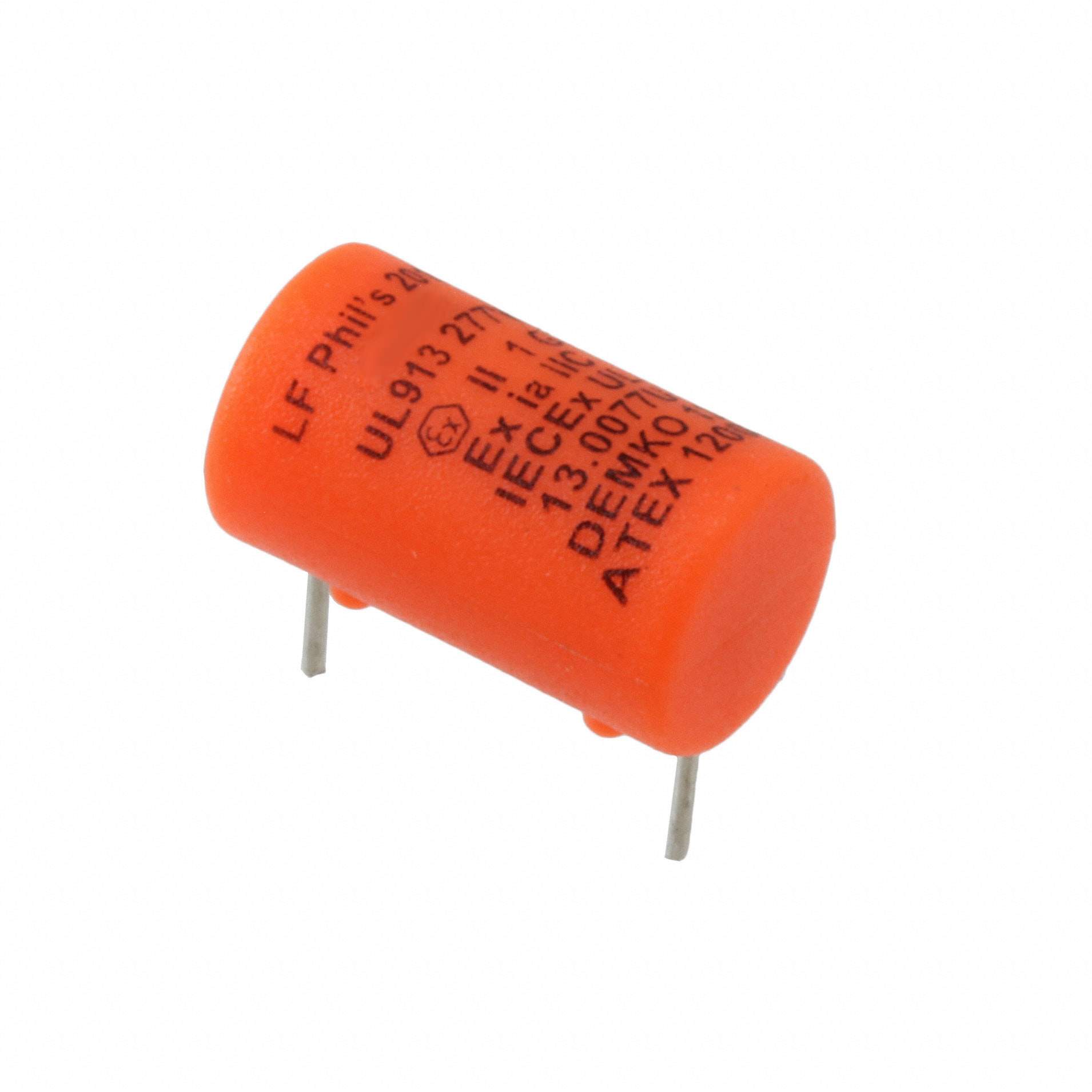

0305.160H Real Image
Same model may have multiple batches, images only for reference.

0305.160H

Part No 0305.160H
Manufacturer Littelfuse Inc.
Catalog Electrical, Specialty Fuses
Description FUSE BRD MNT 160MA 277VAC/VDC / 160mA 277 V AC 277 V DC Fuse Board Mount Through Hole
Datasheet
0305.160H Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Electrical, Specialty Fuses
Mfr Littelfuse Inc.
Series PICO® 305
Package Bulk
Mounting Type Through Hole
Fuse Type Board Mount
Current Rating (Amps) 160mA
Voltage Rating - AC 277 V
Voltage Rating - DC 277 V
Applications Hazardous Locations
Features Intrinsically Safe
Approval Agency ATEX, cURus, IECEx
Temperature Range - Operating -40°C ~ 50°C
Breaking Capacity @ Rated Voltage 1.5kA
Package / Case Radial, Can, Horizontal
Size / Dimension 0.354" Dia x 0.614" L (9.00mm x 15.60mm)
Melting I2t 0.00202
DC Cold Resistance 3 Ohms
Standard Package 100
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
California Prop 65 Warning Information
Win Source Part Number 1340803-0305.160H
Ultra Librarian 3D Model Ultra Librarian 0305.160H CAD Model

Description

The 1340803-0305.160H is a specialty fuse that belongs to the Circuit Protection - Electrical, Specialty Fuses category.

  • Series: PICO® 305
  • Packaging: Bulk
  • Standard Package: 100
  • Manufacturer: Littelfuse Inc.
  • Properties: Intrinsically Safe
  • Fuse Type: Board Mount
  • Voltage Ratings: 277 VAC, 277 VDC
  • Breaking Capacity @ Rated Voltage: 1.5kA
  • Melting I2t: 0.00202
  • Size/Dimension: 0.354" Dia x 0.614" L (9.00mm x 15.60mm)
  • DC Cold Resistance: 3 Ohms
  • Application: Hazardous Locations
  • HTSUS: 8536.10.0040
