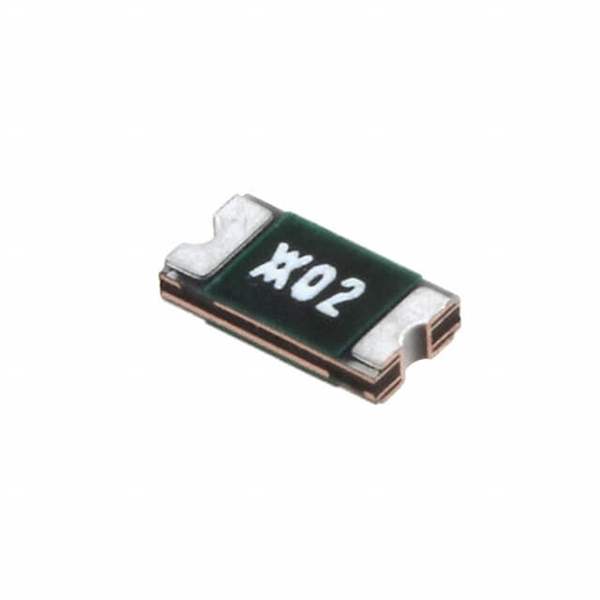

NANOASMDC016F-2

Name: NANOASMDC016F-2
Brand: Littelfuse Inc.
SKU: 1314408
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	NANOASMDC016F-2
Manufacturer	Littelfuse Inc.
Catalog	PTC Resettable Fuses
Datasheet	NANOASMDC016F-2 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection>PTC Resettable Fuses
Mfr	Littelfuse Inc.
Series	PolySwitch®, nanoASMD
Package	Tape & Reel
Type	Polymeric
Voltage - Max	48V
Current - Max	10 A
Current - Hold (Ih) (Max)	160 mA
Current - Trip (It)	450 mA
Time to Trip	300 ms
Resistance - Initial (Ri) (Min)	1.1 Ohms
Resistance - Post Trip (R1) (Max)	5 Ohms
Temperature Range - Operating	-40°C ~ 85°C
Ratings	AEC-Q200
Mounting	SMD (SMT)
Package / Case	1206 (3216 Metric), Concave
Dimension	0.126" L x 0.063" W (3.20mm x 1.59mm)
Thickness (Max)	0.039" (1.00mm)
MSL Level	2A (4 Weeks)
ECCN	EAR99
HTSUS	8533.40.8070
Win Source Part Number	1314408-NANOASMDC016F-2
Ultra Librarian 3D Model	Ultra Librarian NANOASMDC016F-2 CAD Model

Alternative Products

Description

The PolySwitch nanoASMD PTC resettable fuse is a polymeric type of circuit protection component that comes in a tape and reel package.

Maximum Voltage Rating: 48V
Maximum Current: 10A
Trip Current: 450mA
Hold Current: 160mA
Time to Trip: 300ms
Thickness: 0.039 inches or 1.00mm
Package/Case: 1206 (3216 Metric), Concave
Dimension: 0.126 inches L x 0.063 inches W (3.20mm x 1.59mm)
Initial Resistance: 1.1 Ohms
Post-Trip Resistance: 5 Ohms
AEC-Q200 Rated: Yes
Operating Temperature Range: -40°C to 85°C
