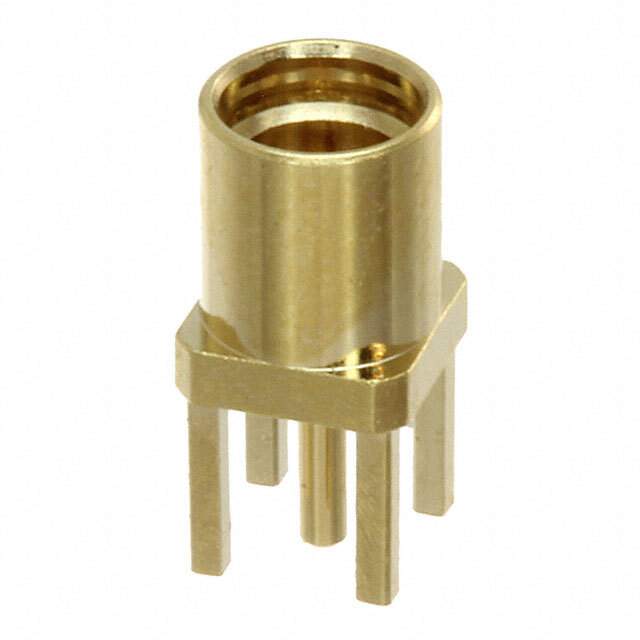

MMCX-J-P-H-ST-TH1 Real Image
Same model may have multiple batches, images only for reference.

MMCX-J-P-H-ST-TH1

Part No MMCX-J-P-H-ST-TH1
Manufacturer Samtec Inc.
Catalog Coaxial Connectors (RF)
Description CONN MMCX JACK STR 50 OHM PCB / MMCX Connector Jack, Female Socket 50Ohm Through Hole Solder
Datasheet
MMCX-J-P-H-ST-TH1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)
Mfr Samtec Inc.
Package Tray
Connector Style MMCX
Connector Type Jack, Female Socket
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting Type Through Hole
Fastening Type Snap-On
Frequency - Max 6 GHz
Number of Ports 1
Housing Color Gold
Center Contact Material Beryllium Copper
Body Material Brass
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -65°C ~ 125°C
Voltage Rating 500 V
Base Product Number MMCX-J
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4010
Other Names MMCX-J-P-H-ST-TH1-ND,SAM10617
Standard Package 100
Win Source Part Number 966183-MMCX-J-P-H-ST-TH1
Ultra Librarian 3D Model Ultra Librarian MMCX-J-P-H-ST-TH1 CAD Model

Description

The Samtec Inc. MMCX-J-P-H-ST-TH1 is a snap-on type MMCX connector that has a female socket.

  • Connector Type: MMCX
  • Socket Type: female
  • Housing Color: gold
  • Body Finish: gold
  • Maximum Frequency: 6 GHz
  • Impedance: 50 Ω
  • Standard Package: 100
  • RoHS Compliant: yes
  • Manufacturer: Samtec Inc.
