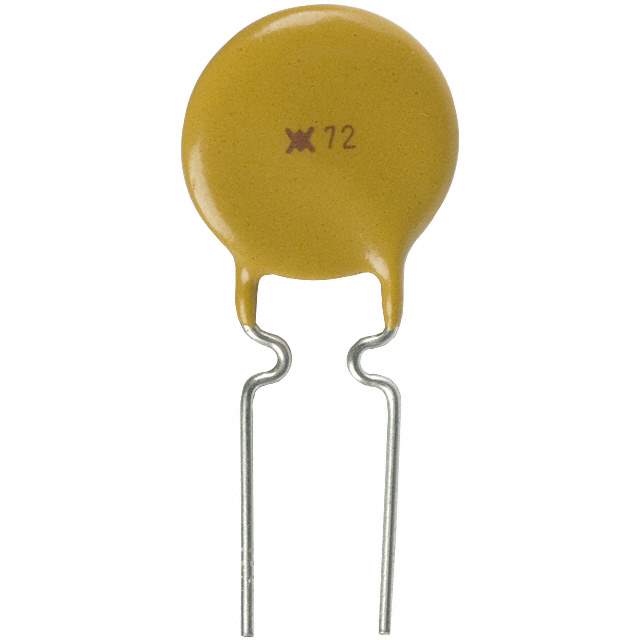

Same model may have multiple batches, images only for reference.

RXEF090-2

Name: RXEF090-2
Brand: Littelfuse Inc.
SKU: 1301593
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	RXEF090-2
Manufacturer	Littelfuse Inc.
Catalog	PTC Resettable Fuses
Datasheet	RXEF090-2 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection>PTC Resettable Fuses
Mfr	Littelfuse Inc.
Series	PolySwitch®, RXEF
Package	Tape & Reel (TR),Tape & Reel Cut Tape (CT)
Type	Polymeric
Voltage - Max	72V
Current - Max	40 A
Current - Hold (Ih) (Max)	900 mA
Current - Trip (It)	1.8 A
Time to Trip	7.2 s
Resistance - Initial (Ri) (Min)	200 mOhms
Resistance - Post Trip (R1) (Max)	470 mOhms
Temperature Range - Operating	-40°C ~ 85°C
Mounting Type	Through Hole
Package / Case	Radial, Disc
Dimension	0.441" Dia x 0.118" T (11.20mm x 3.00mm)
Height - Seated (Max)	0.622" (15.80mm)
Lead Spacing	0.199" (5.05mm)
Approval Agency	CQC, CSA, TUV, UL
Other Names	RXEF090-2,RXEF090CT,RXEF090-2HFCT,RXEF0902,RXEF090DKR,RXEF090TR,RXEF090-2HF,RXEF090-2TR,RXEF090-2HFTR,RXEF090CT,RXEF090TR,RF2638-000,RXEF090-2HF,RXEF090DKRINACTIVE,RXEF090-2CT,A83967-000,RXEF090DKR
Standard Package	3,000
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8533.40.8070
Win Source Part Number	1301593-RXEF090-2
Ultra Librarian 3D Model	Ultra Librarian RXEF090-2 CAD Model

Alternative Products

Description

The RXEF090-2 is a PolySwitch type PTC resettable fuse designed for through-hole mounting.

Maximum Voltage: 72V
Maximum Current: 40A
Hold Current: 900mA
Trip Current: 1.8A
Time to Trip: 7.2s
Initial Resistance: 200 mOhms
Post Trip Resistance: 470 mOhms
Package: Tape and Reel
Standard Package: 3,000
Package: Radial, Disc
Diameter: 0.441"
Thickness: 0.118"
Operating Temperature Range: -40°C ~ 85°C
Manufacturer: Littelfuse Inc.
