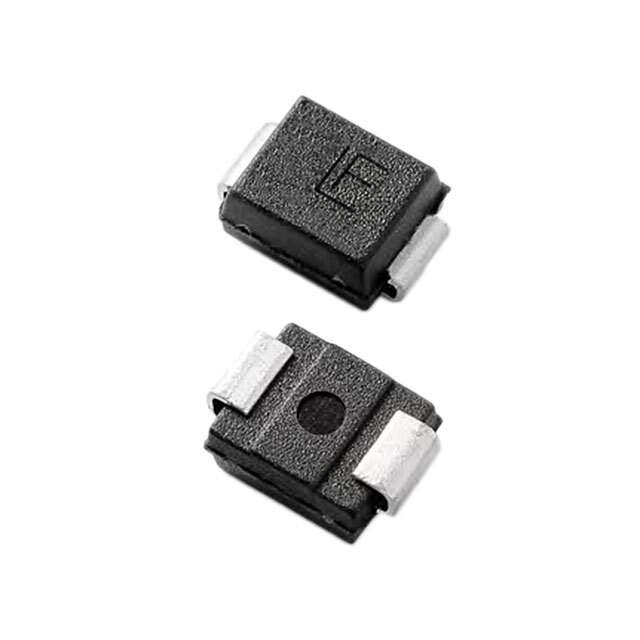

SMBJ16A-HR Real Image
Same model may have multiple batches, images only for reference.

SMBJ16A-HR

Part No SMBJ16A-HR
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Datasheet
SMBJ16A-HR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Littelfuse Inc.
Series SMBJ-HR
Package Tape & Reel (TR)
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 16V
Voltage - Breakdown (Min) 17.8V
Voltage - Clamping (Max) @ Ipp 26V
Current - Peak Pulse (10/1000µs) 23.1A
Power - Peak Pulse 600W
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -65°C ~ 150°C (TJ)
Mounting SMD (SMT)
Package / Case DO-214AA, SMB
Supplier Device Package DO-214AA (SMBJ)
Other Names -SMBJ16A-HR
Standard Package 3,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1300591-SMBJ16A-HR
Ultra Librarian 3D Model Ultra Librarian SMBJ16A-HR CAD Model

Description

The SMBJ-HR series of zener diodes from Littelfuse Inc. provides general-purpose circuit protection.

  • Diode Type: Unidirectional
  • Reverse Standoff Voltage: 16V
  • Breakdown Voltage: 17.8V
  • Clamping Voltage: 26V @ Ipp
  • Peak Pulse Power: 600W
  • Package: Tape and reel (TR)
  • Mounting: SMD (SMT)
  • Package/Case: DO-214AA, SMB
  • Device Package: DO-214AA (SMBJ)
  • Temperature Range: -65°C to 150°C (TJ)
  • Capacitance @ Frequency: Not specified
  • Current Peak Pulse: 23.1A (10/1000µs)
  • MSL Level: 1 (unlimited)
  • HTSUS: 8541.10.0080
