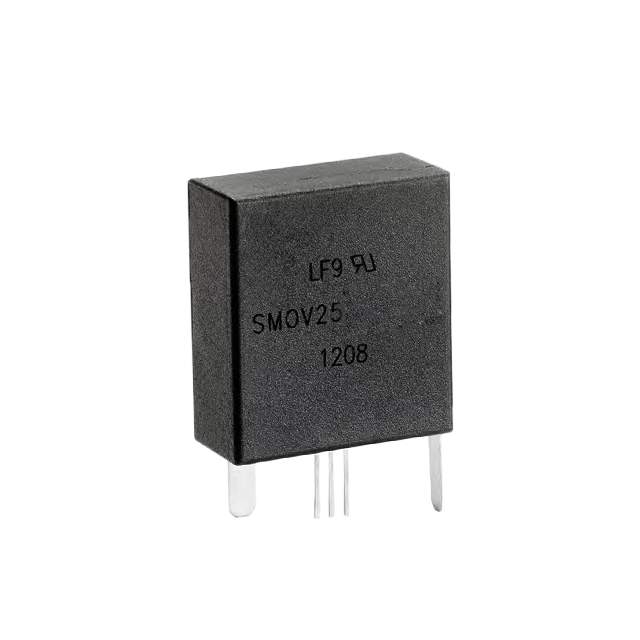

SMOV25S551NP Real Image
Same model may have multiple batches, images only for reference.

SMOV25S551NP

Part No SMOV25S551NP
Manufacturer Littelfuse Inc.
Catalog TVS - Varistors, MOVs
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Varistors, MOVs
Mfr Littelfuse Inc.
Series SMOV25S
Package Bulk
Maximum AC Volts 550 V
Maximum DC Volts 745 V
Varistor Voltage (Min) 819 V
Varistor Voltage (Typ) 910 V
Varistor Voltage (Max) 1.001 kV
Current - Surge 20 kA
Energy 550J
Number of Circuits 1
Capacitance @ Frequency 630 pF @ 1 MHz
Temperature Range - Operating -45°C ~ 75°C (TA)
Features Thermally Protected
Mounting Type Through Hole
Package / Case Box, 5 Lead
Other Names F5850,-SMOV25S551NP
Standard Package 32
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.40.4000
Win Source Part Number 1294328-SMOV25S551NP
Ultra Librarian 3D Model Ultra Librarian SMOV25S551NP CAD Model

Description

The SMOV25S551NP is a thermally protected metal oxide varistor (MOV) that provides excellent circuit protection against surges and transients.

  • Designed For: Use in TVS applications
  • Series: SMOV25S series
  • Capacitance: 630 pF @ 1 MHz
  • Varistor Voltage Range: 819 V to 1.001 kV
  • Surge Current Rating: 20 kA
  • Maximum AC Voltage: 550 V
  • Maximum DC Voltage: 745 V
  • Energy Rating: 550J
  • Package: Bulk
  • Mounting Type: Through-hole
  • Package: Box with 5 leads
  • Operating Temperature Range: -45°C to 75°C (TA)
  • ECCN: EAR99 compliant
  • Manufacturer: Littelfuse Inc.
